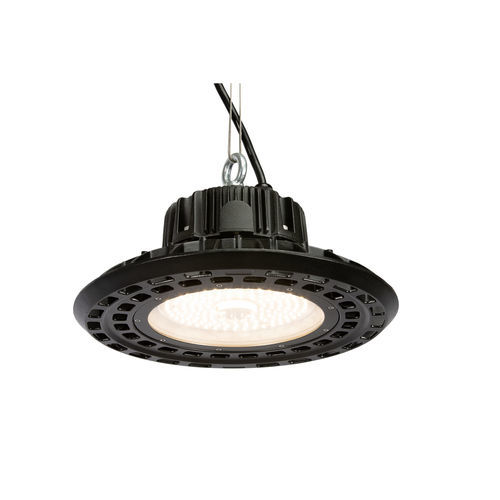

White LED JNFB8-120S-5700-A1-IP65-DIM

coldsquarefor harsh environments

Short description
120 W LED flat high bay lamp equipped with Philips Lumileds LEDs and Meanwell ELG-150 driver. Dimmable, IP65 rated and IK08 impact resistant. Integrated symmetric 72°×72° reflector. Cool white 5700 K, total output 21,800 lm. Designed as a retrofit for 300 W metal halide/HID/HPS fixtures.

Features

• Dimmable
• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 ingress protection
• IK08 impact rating
• Integrated 72°×72° symmetric reflector
• Replaces 300 W metal halide / HID / HPS
• Power factor >0.95
• Surge protection 10 kV
• Die-cast aluminum housing, black
• Lifespan approx. 50,000 hours
• Operating temperature -20°C to 45°C

Product Specifications
Product SKU: JNFB8-120S-5700-A1-IP65-DIM
Power Consumption: 120 W
Input Voltage: 100–305 V AC
Input Frequency: 50/60 Hz
LED Type: Philips Lumileds
LED Driver: Meanwell ELG-150
Total Lumens Output: 21,800 lm
Color Temperature: 5700 K (cool white)
Color Rendering Index (CRI): >70
Beam Angle: 72°×72° (symmetric)
IP Rating: IP65
IK Impact Rating: IK08
Dimming Capability: Dimmable
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable Type: H07RN-F 3G1.0
Housing Material: Die-cast aluminum
Housing Colour: Black
Fixture Dimensions (mm): 340 × 340 × 166
Net Weight: 3.6 kg
Lifespan: 50,000 hours
Working Humidity: 10%–90% RH

Packaging & Shipping
Product Dimensions (mm): 340 × 340 × 166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360 × 360 × 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Specification summary
120 W LED flat high bay lamp with Philips Lumileds, Meanwell ELG-150 driver, IP65, IK08, dimmable, 72°×72° integrated reflector, 21,800 lm at 5700 K — retrofit for 300 W metal halide/HID/HPS.

Technical characteristics

• Power: 120 W
• Luminous flux: 21,800 lm
• Color temperature: 5700 K (cool white)
• LED: Philips Lumileds
• Driver: Meanwell ELG-150
• Voltage range: 100–305 V AC
• Beam angle: 72°×72° (symmetric)
• IP rating: IP65
• IK rating: IK08
• Power factor: >0.95
• Dimmable: Yes
• Housing: Die-cast aluminum, black
• Surge protection: 10 kV
• Operating temperature: -20°C to 45°C
• Lifespan: 50,000 hours
• Dimensions (mm): 340 × 340 × 166
• Net weight: 3.6 kg
