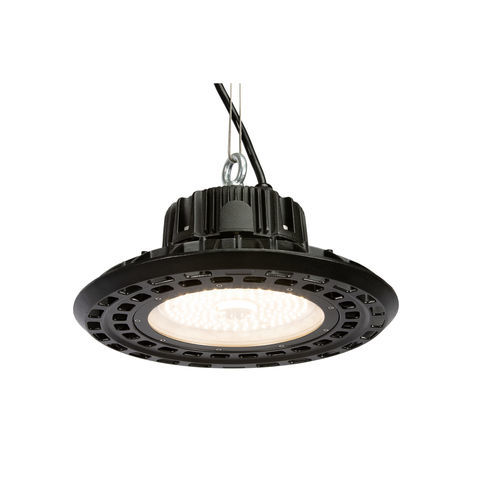

High bay light JNFB8-120S-4000-A1-IP65-ND

LEDfor storage hallassembly workplace

Short description
120 W flat LED high-bay luminaire with Philips Lumileds LEDs and Meanwell ELG-150 driver. IP65-rated, IK08 impact protection and non-dimmable. Integrated symmetric 72°×72° reflector suited to industrial and warehouse applications; replaces 300 W metal halide/HID/HPS fittings.

Key features

• Original Philips Lumileds LEDs for consistent luminous efficacy
• Meanwell ELG-150 LED driver with wide input voltage (100–305V AC)
• Integrated symmetric 72°×72° reflector for controlled distribution
• Ingress protection IP65 and IK08 impact rating
• Non-dimmable; surge protection 10 kV
• Die-cast aluminium housing, black; fixture dimensions 340×340×166 mm
• High power factor >0.95; lifespan approx. 50,000 hours

Technical specifications
Product SKU: JNFB8-120S-4000-A1-IP65-ND
Power: 120 W
LED type: Philips Lumileds
Driver: Meanwell ELG-150
Luminous flux: 21,800 lm
Colour temperature: 4000 K (natural white)
Beam angle: 72°×72° (symmetric)
IP rating: IP65
IK impact rating: IK08
Power factor: >0.95
Input voltage: 100–305V AC
Frequency: 50/60 Hz
Dimming: Non-dimmable
Surge protection: 10 kV
Housing material: Die-cast aluminium, black
Fixture dimensions (mm): 340 × 340 × 166
Net weight: 3.6 kg
Lifespan: 50,000 hours

Packaging & shipping
Product dimensions (mm): 340×340×166
Net weight (kg): 3.6
Export carton dimensions (mm): 360×360×205
Products per carton: 1
Export carton gross weight (kg): 4.2

Application areas

• Warehouses and logistics centres
• Production halls and assembly lines
• Industrial storage and racking areas
• Sports halls and large indoor commercial spaces
