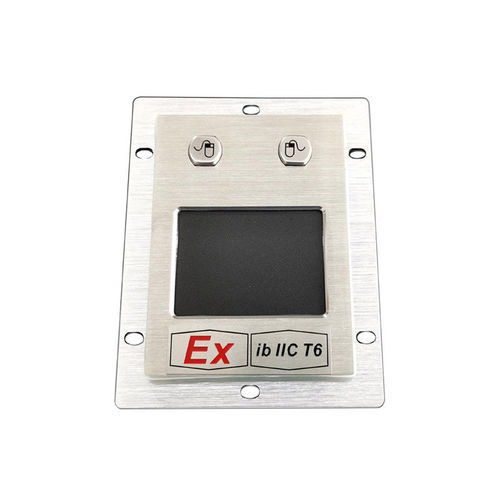

Touchpad for the pharmaceutical industry KHExMV3(-80TP)

for the petroleum industryfor oil industry applicationsindustrial

Product overview
The KHExMV3(-80TP) is a compact, rear-panel mount explosion-proof touchpad module designed for hazardous industrial environments with limited panel depth. Rear mounting (80 × 110 mm footprint) enables secure installation from behind the panel for simplified integration. The unit uses high-precision pressure-sensing technology, a stainless steel front panel with IP65 front protection, a USB plug-and-play interface and CNEX Ex ib IIC T6 Gb certification for safe and reliable cursor control in demanding conditions.

Applications

• Compact control stations and limited-depth enclosures
• Petrochemical and chemical plants
• Oil & gas processing facilities
• Pharmaceutical and other hazardous industrial environments

Features

• High-precision pressure-sensing touchpad technology
• Light-touch, non-fatigue surface for extended operator comfort
• Two integrated mechanical buttons (left and right)
• Stainless steel front panel construction with IP65 front ingress protection
• Rear-panel mounting design with an 80 × 110 mm footprint for simplified rear installation
• Explosion-proof certified: Ex ib IIC T6 Gb (CNEX)
• USB interface for plug-and-play operation

Specifications
Dimensions: 80 × 110 mm
Keys: 2 keys (left, right)
Front panel: Stainless steel
Interface: USB
Voltage: Ui = 5 V DC
Current: Ii = 30 mA (typical)
EMC standard: EN55022 (Class B)
OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature range: Storage: -40°C to +80°C; Operating: -30°C to +70°C
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb (CNEX)
Humidity: 20–90% RH
Atmospheric pressure: 60–106 kPa
MTBF: > 50,000 h
MTTR: < 30 min
Warranty: 1-year limited warranty

Technical details / specifications

• Model: KHExMV3(-80TP)
• Certification: CNEX Ex ib IIC T6 Gb (explosion-proof); additional third-party certifications indicated on product page
• Mounting: Rear-panel mount, 80 × 110 mm footprint
• Construction: Stainless steel front panel
• Ingress protection: IP65 (front)
• Input method: Pressure-sensing touchpad; two mechanical buttons (left/right)
• Electrical: USB interface, 5 V DC supply, typical current 30 mA
• EMC: Meets EN55022 (Class B)
• Operating environment: -30°C to +70°C; storage -40°C to +80°C; 20–90% RH; atmospheric pressure 60–106 kPa
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
