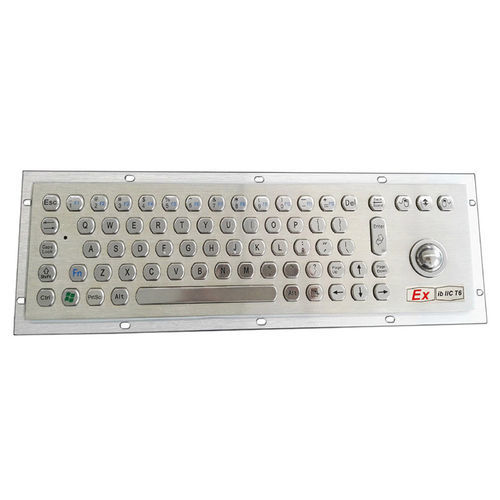

Panel-mount keyboard KHExKMV2(-370A)
carbon contact68-keywith 3 mouse keys

Panel-mount keyboard - KHExKMV2(-370A) - Kehang Technology - carbon contact / 68-key / with 3 mouse keys
Panel-mount keyboard - KHExKMV2(-370A) - Kehang Technology - carbon contact / 68-key / with 3 mouse keys
Panel-mount keyboard - KHExKMV2(-370A) - Kehang Technology - carbon contact / 68-key / with 3 mouse keys - image - 2
Panel-mount keyboard - KHExKMV2(-370A) - Kehang Technology - carbon contact / 68-key / with 3 mouse keys - image - 3
Panel-mount keyboard - KHExKMV2(-370A) - Kehang Technology - carbon contact / 68-key / with 3 mouse keys - image - 4
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
with 3 mouse keys, 68-key
Pointing device
with trackball
Domain
control panel, for mining applications, for marine applications, for the petroleum industry, petrochemical
Connection type
USB
Material
304 stainless steel
Protection level
explosion-proof, vibration-resistant, IP65

Description

Product overview
The KHExKMV2(-370A) is a panel-mounted, certified explosion-proof stainless steel keyboard with an integrated sealed precision trackball for reliable operation in hazardous industrial environments. Constructed from SUS304 stainless steel and certified Ex ib IIC T6 Gb (CNEx), it supports gloved use, vibration resistance and stable tactile pointing. Place of Origin: China. Certifications: CE / ROHS / FCC.

Key features
  • SUS304 stainless steel panel and keys
  • Front protection: IP65 waterproof and dustproof
  • Sealed, integrated trackball with 3 buttons for precise cursor control
  • Key switches with carbon-on-gold contacts for durable tactile response
  • Explosion-proof rating Ex ib IIC T6 Gb (CNEx)
  • USB interface (Ui = 5V DC, Ii = 30mA)


Applications
Designed for oil & gas, mining, petrochemical, offshore and heavy industrial control panels where hazardous-area certification, glove operability, vibration resistance and reliable pointing are required.

Specifications
Dimensions: 370 x 110 mm
Keys: 68 + 3 function buttons
Key travel: 2.00 mm
EMC standard: Council EMC directive 2004/108/EC
Interface: USB
Top panel: Metal (SUS304)
Pointing device: Sealed integrated trackball with 3 buttons
Voltage: Ui = 5V DC
Current: Ii = 30mA
OS compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature range: Storage -40°C to +80°C; Operating -30°C to +70°C
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb (CNEx)
Atmospheric pressure: 60–106 kPa
Humidity: 20–95% RH (operating)
MTBF: > 50,000 hours
MTTR: < 30 minutes
Warranty: 1-year limited warranty

Technical specifications
  • Model: KHExKMV2(-370A)
  • Material: SUS304 stainless steel (panel and keys)
  • Ingress protection: IP65 (front)
  • Pointing device: Integrated sealed trackball with 3 buttons
  • Key technology: Key switches with carbon-on-gold contacts
  • Interface & power: USB, Ui = 5V DC, Ii = 30mA
  • Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
  • Explosion rating: Ex ib IIC T6 Gb (CNEx)
  • OS support: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
  • Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
  • Warranty: 1-year limited
