Desktop keyboard KHExKMV2(-375TP)
with mechanical keys83-keywith touchpad

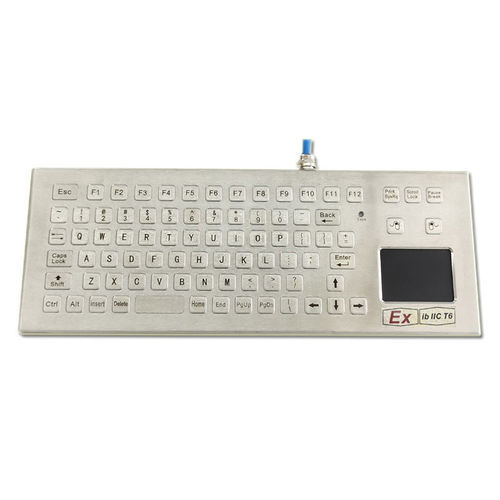

Desktop keyboard - KHExKMV2(-375TP) - Kehang Technology - with mechanical keys / 83-key / with touchpad
Desktop keyboard - KHExKMV2(-375TP) - Kehang Technology - with mechanical keys / 83-key / with touchpad
Desktop keyboard - KHExKMV2(-375TP) - Kehang Technology - with mechanical keys / 83-key / with touchpad - image - 2
Desktop keyboard - KHExKMV2(-375TP) - Kehang Technology - with mechanical keys / 83-key / with touchpad - image - 3
Desktop keyboard - KHExKMV2(-375TP) - Kehang Technology - with mechanical keys / 83-key / with touchpad - image - 4
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
desktop
Key type
with mechanical keys
Number of keys
83-key
Pointing device
with touchpad
Domain
industrial
Connection type
USB
Material
304 stainless steel
Protection level
explosion-proof, IP65

Description

Product Overview
The KHExKMV2(-375TP) is a desktop-style explosion-proof keyboard designed for use in hazardous industrial environments. It features a flat 83-key layout with 12 dedicated FN keys and an integrated sealed touchpad for reliable cursor control. The unit is built with a SUS304 stainless steel top panel and is certified Ex ib IIC T6 (CNEx). Place of Origin: China. Brand: CNKHTECH. Model: KHExKMV2(-375TP).

Features
  • Desktop standalone design with flat 83-key layout
  • 12 dedicated FN function keys for shortcut control
  • Integrated sealed touchpad for precise cursor navigation
  • SUS304 stainless steel top panel
  • IP65 front-panel waterproof and dustproof rating
  • Ex ib IIC T6 explosion-proof certification (CNEx)
  • USB interface; customizable key layouts available

Specifications
Dimensions: 375 x 140 x 37 mm
Keys: 83 keys
Key travel: 0.5 mm
Interface: USB
Voltage/Current: Ui = 5V DC, Ii = 30mA
EMC standard: Council EMC directive 2004/108/EC
Top panel: Metal (SUS304)
Pointing device: Integrated sealed touchpad
OS compatibility: Windows all versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb
Atmospheric pressure: 60-106 KPa
Humidity: 20–95% RH (operating)
MTBF: > 50,000 H
MTTR: < 30 min
Warranty: 1-year limited warranty

Technical details
  • Model: KHExKMV2(-375TP)
  • Brand: CNKHTECH
  • Construction material: SUS304 stainless steel (metal top panel)
  • Protection rating: IP65 (front)
  • Explosion-proof certification: Ex ib IIC T6 (CNEx)
  • Layout: Flat 83-key desktop layout with 12 FN keys
  • Pointing device: Integrated sealed touchpad
  • Interface: USB, Ui = 5V DC, Ii = 30mA
  • Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
  • Environmental: 60-106 KPa atmospheric pressure; 20–95% RH operating humidity
  • EMC compliance: Council EMC directive 2004/108/EC
  • Reliability: MTBF > 50,000 H; MTTR < 30 min
  • Warranty: 1-year limited warranty
