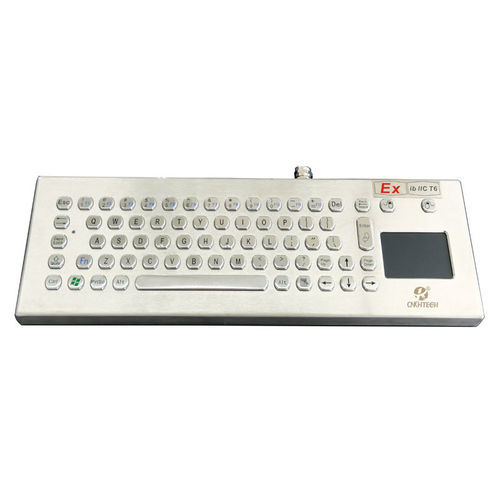

Desktop keyboard KHExKMV2(-395TP)

with mechanical keys68-keywith touchpad

Product overview
The KHExKMV2(-395TP) is a compact desktop explosion-proof keyboard engineered for hazardous industrial environments where space is limited. It features a 68-key layout with an integrated sealed touchpad and a high-strength stainless steel front panel, delivering reliable input in corrosive, dusty or wet conditions. Certified Ex ib IIC T6 (CNEx) and rated IP65 at the front, it is suitable for chemical, pharmaceutical, oil & gas and other classified areas.

Key features

• Compact 68-key desktop format for space-constrained workstations
• Sealed integrated touchpad for precise cursor control without external mouse
• Stainless steel construction for corrosion and vandal resistance
• Front panel IP65: waterproof, dustproof and easy to clean
• Explosion-proof certification: Ex ib IIC T6 (CNEx)
• USB interface; optional international keyboard layouts

Specifications

• Model: KHExKMV2(-395TP)
• Dimensions: 395 x 135 x 26 mm
• Keys: 68; Key travel: 2.00 mm
• Top panel: Stainless steel / metal construction
• Mouse: Integrated sealed touchpad
• Interface: USB
• Electrical: Ui = 5 V DC; Ii = 30 mA
• EMC: Council EMC directive 2004/108/EC
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Operating -30°C to +70°C; Storage -40°C to +80°C
• Protection level (front): IP65
• Explosion-proof grade: Ex ib IIC T6 Gb (CNEx)
• Atmospheric pressure: 60 - 106 kPa; Humidity: 20–95% RH (operating)
• Reliability: MTBF > 50,000 h; MTTR < 30 min

Applications

• Chemical and petrochemical plants
• Pharmaceutical manufacturing and laboratories
• Oil & gas platforms and refineries
• Hazardous-area control rooms, terminals and kiosks

Compliance & warranty

• Certifications: Ex ib IIC T6 (CNEx); CE; RoHS; FCC
• Ingress protection verified to IP65 (front)
• Warranty: minimum 1-year limited warranty
• Designed for rapid serviceability: MTTR < 30 minutes
