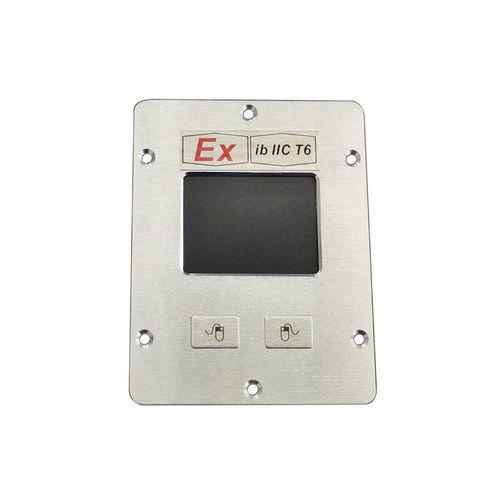

Touchpad for the pharmaceutical industry KHExMV3(-105TP)

for the petroleum industryfor the petrochemical industrystainless steel

Product Description
The KHExMV3(-105TP) is a CNEX-certified Ex ib IIC T6 Gb explosion-proof touchpad module designed for hazardous industrial environments requiring a sealed, compact pointing solution. It uses pressure-sensing technology with a light-touch, non-fatigue surface and two integrated buttons in a stainless steel front housing. The unit provides front IP65 protection and a recessed (countersunk) panel-mount form factor with a 105×134 mm footprint for secure installation in control panels. USB interface supports plug-and-play operation. Suitable for petrochemical, oil & gas, pharmaceutical and other Ex-rated applications where a sealed, durable pointing device is needed.

Features

• High-precision pressure-sensing control for accurate cursor movement
• Light-touch, non-fatigue surface for extended operator use
• Two integrated buttons (left, right)
• Stainless steel front with IP65 protection (front)
• Explosion-proof certification: Ex ib IIC T6 Gb (CNEX)
• Recessed (countersunk) panel mounting, 105×134 mm footprint
• USB interface for plug-and-play connectivity

Technical specifications

• Model: KHExMV3(-105TP)
• Dimensions (footprint): 105 x 134 mm
• Keys: 2 keys (left, right)
• Front panel material: Stainless steel
• Interface: USB
• Voltage: Ui = 5V DC
• Current: Ii = 30 mA
• EMC standard: EN55022 (B)
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Storage temperature: -40°C to +80°C
• Operating temperature: -30°C to +70°C
• Protection level: IP65 (front)
• Explosion-proof grade: Ex ib IIC T6 Gb
• Humidity: 20–90% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
• Intended applications: Hazardous industrial environments requiring a sealed, durable pointing device (e.g., petrochemical, oil & gas, pharmaceutical, Ex-rated control panels)
