Clean room touchpad KHExMV3(-MD88TP)for the pharmaceutical industryfor the petroleum industryfor oil industry applications
Add to favorites
Compare this product
Characteristics
- Domain
- industrial, for the pharmaceutical industry, for clean rooms, for the chemical industry, for the petroleum industry, for oil industry applications
- Material
- stainless steel
- Protection level
- waterproof, IP65
- Mounting
- desktop
- Other characteristics
- USB, 2-key
Description
Product Overview

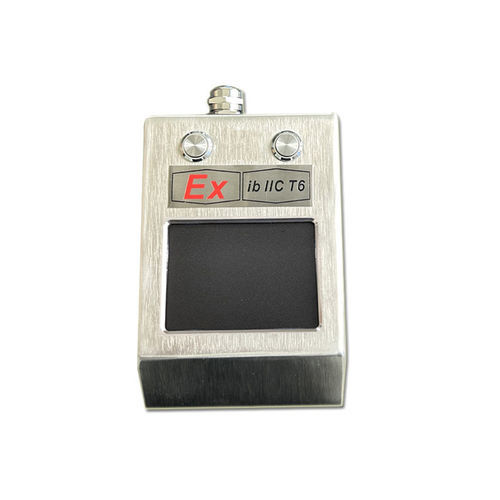

The KHExMV3 (-MD88TP) is a standalone desktop explosion-proof touchpad designed for hazardous and hygiene-sensitive environments that require a sealed, self-contained pointing device. The high-precision pressure-sensing surface provides accurate cursor control without moving parts. The unit includes two circular waterproof buttons, a SUS304 stainless steel front panel and is certified for explosive atmospheres with front protection to IP65.
Recommended Applications
Suitable for desktop workstations in environments such as pharmaceutical cleanrooms, chemical labs, control rooms, oil & gas facilities and other ATEX/IECEx hazardous areas where a sealed pointing device is required.
Features
Specifications
Dimensions: 88 x 133 x 25 mm
Keys: 2 keys (left, right)
Front panel: Stainless steel (SUS304)
Interface: USB
Voltage: Ui = 5V DC
Current: Ii = 30mA
EMC Standard: EN55022 (B)
OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature range: Storage: -40°C to +80°C; Operating: -30°C to +70°C
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb
Humidity: 20–90% RH
Atmospheric pressure: 60–106 KPa
MTBF: > 50,000 H
MTTR: < 30 min
Warranty: 1-year limited warranty
Technical specifications
The KHExMV3 (-MD88TP) is a standalone desktop explosion-proof touchpad designed for hazardous and hygiene-sensitive environments that require a sealed, self-contained pointing device. The high-precision pressure-sensing surface provides accurate cursor control without moving parts. The unit includes two circular waterproof buttons, a SUS304 stainless steel front panel and is certified for explosive atmospheres with front protection to IP65.
Recommended Applications
Suitable for desktop workstations in environments such as pharmaceutical cleanrooms, chemical labs, control rooms, oil & gas facilities and other ATEX/IECEx hazardous areas where a sealed pointing device is required.
Features
- Standalone desktop design – no panel integration required
- High-precision pressure-sensing touchpad for intuitive cursor control
- Two circular waterproof buttons (left and right)
- Front panel in SUS304 stainless steel
- IP65 front protection – waterproof, dustproof and corrosion-resistant
- Explosion-proof certified: Ex ib IIC T6 Gb (CNE x)
- USB interface for easy connectivity
Specifications
Dimensions: 88 x 133 x 25 mm
Keys: 2 keys (left, right)
Front panel: Stainless steel (SUS304)
Interface: USB
Voltage: Ui = 5V DC
Current: Ii = 30mA
EMC Standard: EN55022 (B)
OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature range: Storage: -40°C to +80°C; Operating: -30°C to +70°C
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb
Humidity: 20–90% RH
Atmospheric pressure: 60–106 KPa
MTBF: > 50,000 H
MTTR: < 30 min
Warranty: 1-year limited warranty
Technical specifications
- Model: KHExMV3 (-MD88TP)
- Brand: CNKHTECH
- Certification: Ex ib IIC T6 Gb, EMC EN55022(B)
- Front panel material: SUS304 stainless steel
- Ingress protection: IP65 (front)
- Interface & power: USB, 5V DC, 30mA
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +80°C
- Humidity tolerance: 20–90% RH
- MTBF & MTTR: >50,000 H / <30 min
- Warranty: 1-year limited warranty
