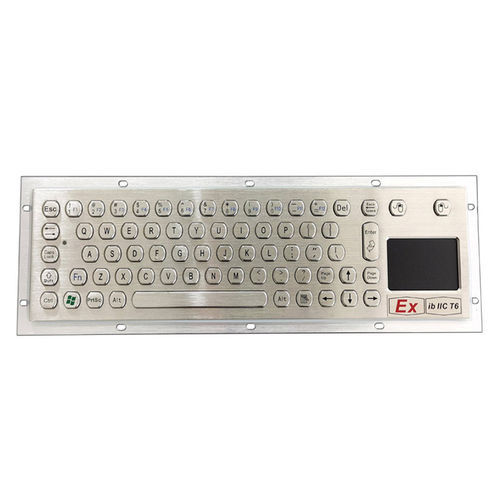

Panel-mount keyboard KHExKMV2(-370TP)

carbon contact68-keywith 2 mouse keys

Product Overview
The KHExKMV2(-370TP) is a certified explosion-proof stainless steel keyboard intended for hazardous industrial environments. It integrates a sealed touchpad and a SUS304 stainless steel top panel and keys, offering front-side IP65 protection and CNEx Ex ib IIC T6 certification for use in gas-hazard zones.

Key Features

• SUS304 stainless steel top panel and keys
• Front IP65 protection (waterproof and dustproof)
• Sealed integrated touchpad (mouse: touchpad)
• Electro-Carbon-on-Gold key switches
• Explosion-proof certified: Ex ib IIC T6 Gb (CNEx)
• USB interface; Ui = 5V DC; Ii = 30mA
• International keyboard layouts and multi-OS compatibility

Applications
Designed for industrial and hazardous locations where gas or vapour explosion risks exist. Typical installations include control panels, HMI consoles, processing plants, offshore units and other environments requiring certified explosion protection and washable surfaces.

Specifications

• Model: KHExKMV2(-370TP)
• Material: SUS304 stainless steel top panel and keys
• Ingress protection: IP65 (front)
• Explosion-proof rating: Ex ib IIC T6 Gb (CNEx)
• Dimensions: 370 x 110 mm
• Key count: 68 + 2
• Key travel: 2.00 mm
• Switch type: Electro-Carbon-on-Gold key switches
• Pointing device: Sealed integrated touchpad
• Interface: USB (Ui = 5V DC; Ii = 30mA)
• EMC: Complies with Council EMC directive 2004/108/EC
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
• Operating humidity: 20–95% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50,000 hours; MTTR: < 30 minutes
• Warranty: 1-year limited

Compliance & Support
Certified to Ex ib IIC T6 Gb (CNEx) and compliant with EMC directive 2004/108/EC. Manufacturer provides a 1-year limited warranty and technical support for installation and maintenance in industrial environments.
