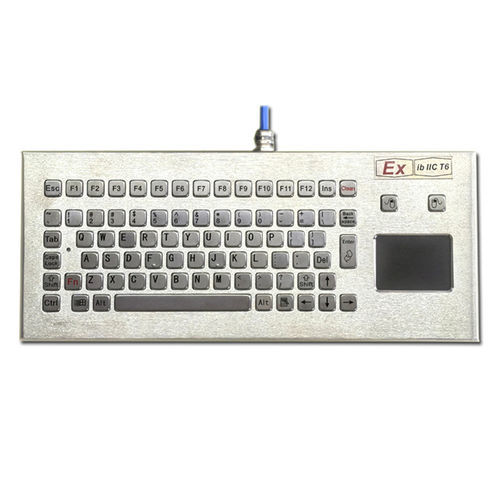

Desktop keyboard KHExKMV2(-368TP）
with mechanical keys80-keywith touchpad

Desktop keyboard - KHExKMV2(-368TP） - Kehang Technology - with mechanical keys / 80-key / with touchpad
Desktop keyboard - KHExKMV2(-368TP） - Kehang Technology - with mechanical keys / 80-key / with touchpad
Desktop keyboard - KHExKMV2(-368TP） - Kehang Technology - with mechanical keys / 80-key / with touchpad - image - 2
Desktop keyboard - KHExKMV2(-368TP） - Kehang Technology - with mechanical keys / 80-key / with touchpad - image - 3
Desktop keyboard - KHExKMV2(-368TP） - Kehang Technology - with mechanical keys / 80-key / with touchpad - image - 4
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
desktop
Key type
with mechanical keys
Number of keys
80-key
Pointing device
with touchpad
Domain
for clean rooms, for medical applications, for the pharmaceutical industry, for the food industry
Connection type
USB
Material
304 stainless steel
Protection level
waterproof, explosion-proof, corrosion-resistant, IP65

Description

Product Overview
The KHExKMV2 (368TP) is an explosion-proof desktop keyboard designed for hazardous environments that require strict hygiene control and secure input management. It features a dedicated Clean Key to lock input during cleaning or idle periods, a sealed touchpad for cursor control, and SUS304 stainless steel construction. Certified Ex ib IIC T6 (CNEx) and rated IP65 at the front, it is suited to cleanrooms, pharmaceutical and food processing areas, medical workstations, and industrial control rooms where sanitation and explosion protection are required.

Key Features
  • Compact 80-key desktop layout
  • Dedicated Clean Key — locks keyboard for safe cleaning or to prevent accidental input
  • Sealed, integrated touchpad for intuitive cursor control
  • SUS304 stainless steel top panel and metal construction
  • Front IP65 protection: waterproof, dustproof, corrosion-resistant
  • Explosion-proof certification Ex ib IIC T6 Gb (CNEx)
  • Standalone desktop design — no panel cutout required
  • USB interface for plug-and-play operation
  • Custom key layouts available on request


Specifications (summary)
Dimensions: 368 x 155 mm
Keys: 80 + 2 keys
Key travel: 2.00 mm
Interface: USB
Protection level: IP65 (front)
Explosion-proof grade: Ex ib IIC T6 Gb (CNEx)
Voltage/Current: Ui = 5V DC; Ii = 30mA
OS compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
Operating humidity: 20–95% RH
MTBF: > 50,000 hours; MTTR: < 30 minutes
Warranty: 1-year limited warranty

Technical details
  • Model: KHExKMV2 (product designation)
  • Brand: CNKHTECH
  • Construction material: SUS304 stainless steel; metal top panel
  • Protection: IP65 front — waterproof, dustproof, corrosion-resistant
  • Explosion-proof certification: Ex ib IIC T6 Gb (CNEx)
  • Dimensions: 368 x 155 mm
  • Key count: 80 + 2 keys
  • Key travel: 2.00 mm
  • Interface: USB (plug-and-play)
  • Voltage/Current: Ui = 5V DC; Ii = 30mA
  • Operating humidity: 20–95% RH
  • Temperature range: Storage -40°C to +80°C; Operating -30°C to +70°C
  • OS compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
  • MTBF: > 50,000 hours; MTTR: < 30 minutes
  • Warranty: 1-year limited warranty
