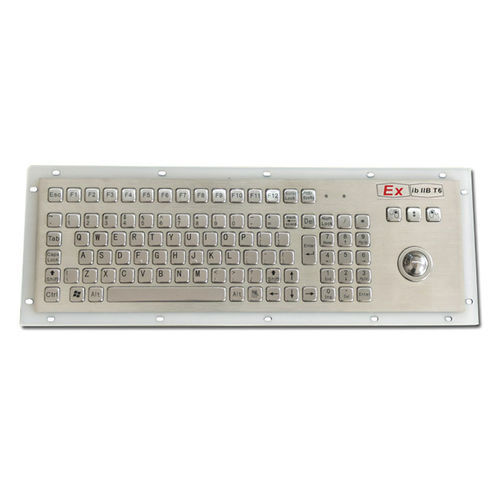

Panel-mount keyboard KHExKMV2(-400)
with mechanical keys95-keywith trackball

Panel-mount keyboard - KHExKMV2(-400) - Kehang Technology - with mechanical keys / 95-key / with trackball
Panel-mount keyboard - KHExKMV2(-400) - Kehang Technology - with mechanical keys / 95-key / with trackball
Panel-mount keyboard - KHExKMV2(-400) - Kehang Technology - with mechanical keys / 95-key / with trackball - image - 2
Panel-mount keyboard - KHExKMV2(-400) - Kehang Technology - with mechanical keys / 95-key / with trackball - image - 3
Panel-mount keyboard - KHExKMV2(-400) - Kehang Technology - with mechanical keys / 95-key / with trackball - image - 4
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
95-key
Pointing device
with trackball
Domain
for medical applications, for mining applications, for the petroleum industry, petrochemical
Connection type
USB
Material
304 stainless steel
Protection level
explosion-proof, corrosion-resistant, with numeric keypad, IP65
Other characteristics
integrated, with numeric keypad

Description

Product Overview
The KHExKMV2(-400) is a full-size, panel-mount explosion-proof keyboard designed for hazardous industrial environments that require comprehensive data-entry and precise cursor control. It includes a 95-key layout with a dedicated numeric keypad and an integrated 25 mm trackball. The front panel is SUS304 stainless steel and the unit offers IP65 frontal protection. Certified Ex ib IIC T6 (CNEx) for safe operation in classified areas.

Key Applications
  • Petrochemical plants
  • Oil refineries
  • Mining operations
  • Pharmaceutical facilities
  • Other explosion-proof rated locations

Features
  • Full-size 95-key layout with numeric keypad and FN keys
  • Integrated 25 mm trackball for precise cursor control
  • SUS304 stainless steel front panel
  • IP65 waterproof and dustproof front, corrosion-resistant
  • Ex ib IIC T6 explosion-proof certification
  • Panel-mount design for control cabinets and operator stations
  • USB interface for plug-and-play connectivity
  • Customizable key layouts and legends available

Technical specifications
  • Model: KHExKMV2(-400)
  • Place of Origin: China
  • Brand: CNKHTECH
  • Certification: CE / ROHS / FCC; Ex ib IIC T6 Gb (explosion-proof grade)
  • Dimensions: 400 x 124 mm
  • Keys: (95 + 3) keys
  • Key travel: 2.00 mm
  • Interface: USB
  • Top panel: Metal construction (SUS304 stainless steel)
  • Pointing device: Integrated 25 mm trackball
  • Voltage: Ui = 5V DC
  • Current: Ii = 30 mA
  • EMC Standard: Council EMC directive 2004/108/EC
  • OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
  • Storage temperature: -40°C to +80°C
  • Operating temperature: -30°C to +70°C
  • Protection level (front): IP65
  • Atmospheric pressure: 60 - 106 KPa
  • Humidity (operating): 20–95% RH
  • MTBF: > 50000 H
  • MTTR: < 30 min
  • Warranty: 1-year limited warranty
