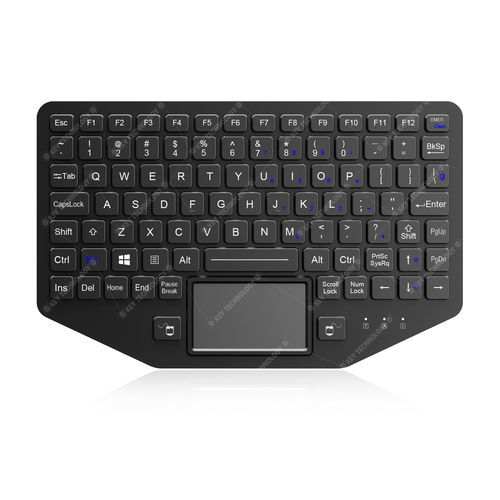

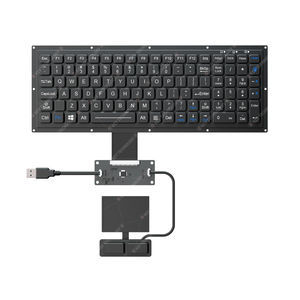

Panel-mount keyboard K-TEK-M275TP-FN-BL-FC-KC-ML

with mechanical keyswith Fn keywith 2 mouse keys

92 keys IP67 fully sealed and durable embedded ultra thin rugged military keyboard, with sealed & ruggedized tough touchpad for fast and accurate cursor position, with built-in ultra-thin Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, 12 function keys(F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. The whole keyboard adopts silicone rubber front plate + PC keycaps and carbon contact + FPC carbon-on-gold key switch technology+ultra-thin stainless steel back plate. With 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid misoperation or typing error. Adjustable white backlight included, top panel mounting solution. Designed to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 283.0mm x 177.7mm (Front panel)

1. Product Overview
This is a 92-key IP67 fully sealed, ultra-thin embedded rugged military keyboard equipped with a sealed rugged touchpad for precise cursor control. It adopts an ultra-thin FPC design and semi-reinforced stainless steel back plate, featuring silent and stable input, anti-microbial & chemical-resistant surface, one-key cleaning function, and adjustable white backlight. Built to meet strict military standards including MIL‑STD‑810H, it supports top-panel mounting and wide system compatibility, delivering reliable performance in extreme harsh environments.

2. Key Features
IP67 fully sealed front panel, dustproof & waterproof for harsh environments
Ultra-thin embedded design with FPC and semi-reinforced stainless steel back plate
Integrated sealed rugged touchpad for fast, accurate cursor control
12 top-row function keys (F1–F12) + numeric combinations on letter keys for full functionality
Ultra-rugged P+R key structure (PC keycaps + Rubber) with anti-microbial & chemical-resistant coating
Carbon contact & FPC carbon-on-gold key switches, silent input with no key loss or sticking
FN+Clean combination for easy online cleaning without disconnection
Adjustable white backlight, supports top-panel mounting
Excellent tactile feedback, long service life, and high reliability

3. Applications
Vehicle & on-board systems
Aerospace & aviation equipment
Naval & maritime vessels
Military & defense facilities
Radar & command consoles
Portable rugged laptops
UAV ground stations

4. Mechanical Data
Key count: 92 keys (including 2 mouse buttons)
Key technology: Carbon contact + FPC carbon-on-gold key switch
Key travel: 1.50mm ± 0.10mm
Actuation force: 1.2N ± 0.2N
Switch life: >5 million operations
Net weight: 222g
Front panel dimensions: 283.0mm × 177.7mm
Mounting: Top panel mounting

5. Electrical & Compliance Data
Supply voltage: DC +5V ±5%
Current consumption: ≤30mA (backlight off); ≤300mA (backlight on)
Interface: USB
OS support: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U‑cos to be confirmed)
Service life: >5 years
EMC standards: EN 55032:2015, EN 55035:2017
Certifications: RoHS, CE, FCC
Optional: MIL‑STD‑461G (EMC / EMI / EMS / ESD)

6. Environmental Adaptability & Reliability
Protection level: IP67 (front panel)
Operating temperature: -40℃ to +75℃
Storage temperature: -50℃ to +85℃
Withstands high humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation
Compliant with MIL‑STD‑810H military environmental standard
Key lifespan: >5 million actuations
MTBF: >20000 hours
MTTR: Passes comprehensive environmental & transport drop tests

7. Technical Specifications
Patent number: 202420937267.2
Meets 10 key military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity
Ultra-thin embedded structure with semi-reinforced stainless steel back plate
Silent, high-tactile input with zero key error or jamming
