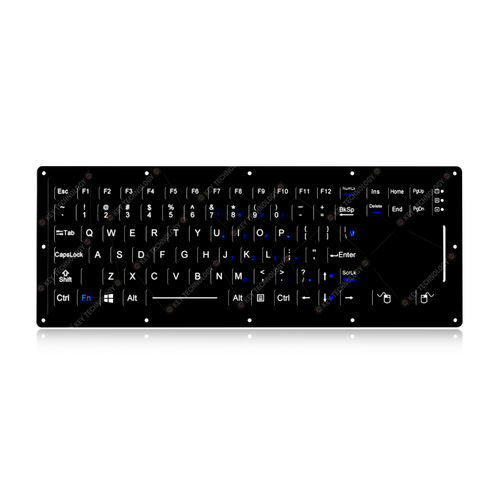

Panel-mount keyboard K-TEK-M315TP-FN-BL-FC-KC-ML-EP

with mechanical keyswith 2 mouse keys87-key

87 keys IP67 fully sealed and durable embedded ultra thin rugged military keyboard, with built-in ultra-thin Flexible Printed Circuit, reinforced aluminum alloy back plate, and the front panel is equipped with aluminum alloy frame to reinforce and prevent keyboard deformation, with fully sealed waterproof reinforced wide temperature touchpad for fast and accurate cursor position, 12 function keys(F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. Keyboard surface uses ultra rugged P+R technology (PC keycaps + rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology, with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity

1. Product Overview
This is an 87-key IP67 fully sealed ultra-thin embedded military rugged keyboard with a fully sealed wide-temperature waterproof touchpad, reinforced aluminum alloy back plate and front aluminum alloy frame to prevent deformation. It adopts ultra-rugged P+R key structure and high-reliability carbon-on-gold key switches, featuring silent & accurate input, anti-microbial & chemical-resistant surface, FN+Clean quick cleaning and adjustable white backlight. Compliant with MIL-STD-810F and optional MIL-STD-461G, it meets 10 key military standards and supports panel mounting for stable operation in extreme harsh environments.

2. Key Features
IP67 fully sealed front panel, waterproof and dustproof for harsh military & industrial environments
Aluminum alloy back plate + front aluminum frame for reinforcement, effectively anti-deformation
Integrated fully sealed waterproof wide-temperature touchpad for fast & accurate cursor control
12 top-line function keys (F1–F12) + combination numbers for full keyboard functionality
Ultra rugged P+R technology (PC keycaps + rubber) with durable anti-microbial coating
Carbon contact & FPC carbon-on-gold key switches, no key missing, no stuck keys, silent input
FN + Clean combination for easy online cleaning without disconnecting from PC
Adjustable white backlight, standard panel mount solution
Resists most chemicals, liquids, fungi, salt mist, dust and extreme temperatures

3. Applications
Vehicle & on-board systems
Aerospace & aviation equipment
Naval & maritime vessels
Military & defense facilities
Radar & command consoles
Portable rugged laptops
UAV ground stations

4. Mechanical Data
Keys: 87 keys (including 2 mouse buttons)
Key technology: Carbon contact + FPC carbon-on-gold key switch
Key travel: 1.50mm ± 0.10mm
Actuation force: 1.2N ± 0.2N
Switch life: >5 million operations
Front panel dimensions: 333.0mm × 126.0mm
Structure: Ultra-thin FPC + aluminum alloy back plate + aluminum alloy front frame
Mounting: Panel mount

5. Electrical & compliance data
Supply voltage: DC +5V±5%
Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC: EN 55032:2015, EN 55035:2017
Service life: >5 years
Interface: USB
OS support: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos to be confirmed)
Certifications: RoHS, CE, FCC
Optional: MIL-STD-461G (EMC / EMI / EMS / ESD)

6. Environmental adaptability & reliability
Protection level: IP67 (front panel)
Operating temperature: -40℃ ~ +75℃
Storage temperature: -50℃ ~ +85℃
Compliant with MIL-STD-810F (wide temp, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation)
Key lifespan: >5 million actuations
MTBF: >20000 hours
MTTR: Passes humidity, vibration, shock, temperature shock, fungus, salt spray, rain, dust and transport drop tests

7. Technical specifications
Ultra-thin FPC design with aluminum alloy back plate and front aluminum frame for high strength
P+R rugged key structure with carbon-on-gold switch technology for long durability
Meets 10 military core standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity
1.5mm key travel with excellent tactile feeling, silent and error-free input
ouchpad, adjustable white backlight, panel mount ready
