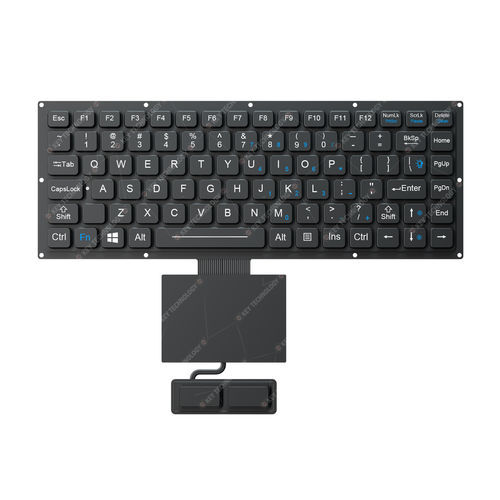

Panel-mount keyboard K-TEK-M280-FN-BL-FC-KC+TP85-DML+2K

with mechanical keyswith 2 mouse keys87-key

87 keys IP67 fully sealed and durable embedded ultra thin rugged keyboard, with built-in ultra-thin Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, external with fully sealed waterproof and reinforced wide-temperature touchpad for fast cursor position, 12 function keys(F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology, with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: Keyboard: 280.0mm x 97.3mm (Front Panel) (L x W) TouchPad: 85.0mm x 60.0mm (L x W)

1. Product Overview
This is an 87-key IP67 fully sealed ultra-thin embedded rugged keyboard with an external fully sealed waterproof wide-temperature touchpad, equipped with built-in ultra-thin FPC and semi-reinforced stainless steel back plate. It adopts ultra-rugged P+R key structure and high-reliability carbon-on-gold key switches, featuring silent & accurate input, anti-microbial & chemical-resistant surface, FN+Clean quick cleaning and adjustable white backlight. Compliant with MIL-STD-810F and optional MIL-STD-461G, it meets 10 key military standards and supports panel mounting for stable performance in extreme harsh environments.

2. Key Features
IP67 fully sealed front panel, waterproof and dustproof for harsh environments
External fully sealed waterproof & reinforced wide-temperature touchpad for fast & accurate cursor control
Ultra-thin embedded design with FPC + semi-reinforced stainless steel back plate
12 top-line function keys (F1–F12) + combination numbers for full functionality
Ultra rugged P+R structure (PC keycaps + Rubber) with anti-microbial & durable coating
Carbon contact & FPC carbon-on-gold switches, silent input with no key missing or sticking
FN + Clean combination for easy online cleaning without disconnecting
Adjustable white backlight, standard panel mount solution
Resists most chemicals, liquids, fungi, salt mist, dust and extreme temperatures

3. Applications
Vehicle & on-board systems
Aerospace & aviation equipment
Naval & maritime vessels
Military & defense facilities
Radar & command consoles
Portable rugged laptops
UAV ground stations

4. Mechanical Data
Keys: 87 keys + 2 mouse buttons
Key technology: Carbon contact + FPC carbon-on-gold key switch
Key travel: 1.50mm ± 0.10mm
Actuation force: 1.2N ± 0.2N
Switch life: >5 million operations
Keyboard dimensions: 280.0mm × 97.3mm (L×W)
Touchpad dimensions: 85.0mm × 60.0mm (L×W)
Mounting: Panel mount

5. Electrical & compliance data
Supply voltage: DC +5V±5%
Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC: EN 55032:2015, EN 55035:2017
Service life: >5 years
Interface: USB
OS support: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos to be confirmed)
Certifications: RoHS, CE, FCC
Optional: MIL-STD-461G (EMC / EMI / EMS / ESD)

6. Environmental adaptability & reliability
Protection level: IP67 (front panel)
Operating temperature: -40℃ ~ +75℃
Storage temperature: -50℃ ~ +85℃
Compliant with MIL-STD-810F (wide temp, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation)
Key lifespan: >5 million actuations
MTBF: >20000 hours
MTTR: Passes humidity, vibration, shock, temperature shock, fungus, salt spray, rain, dust and transport drop tests

7. Technical specifications
Built-in ultra-thin FPC + semi-reinforced ultra-thin stainless steel back plate
P+R rugged key structure with carbon-on-gold switch technology
Meets 10 military core standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity
1.5mm key travel with excellent tactile feel, silent and error-free input
External sealed wide-temperature touchpad, adjustable white backlight, panel mount ready
