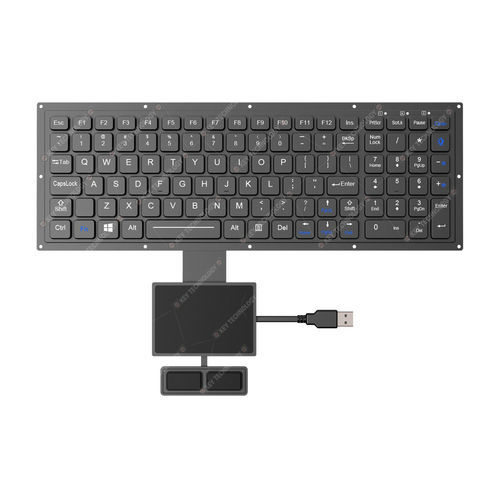

Panel-mount keyboard K-TEK-M340KP-FN-BL-FC-KC+TP85-DML+2K-FC

carbon contact102-keywith touchpad

This ultra-thin 102-key panel-mount keyboard features an integrated wide-temperature touchpad and adjustable white backlight, engineered for harsh environments and military-grade reliability.

Overview / Key features

• 102 keys with numeric keypad on the right and 12 function keys (F1–F12) on the top line for efficient operation.
• Ultra-thin design with built-in Flexible Printed Circuit (FPC) and semi-reinforced ultra-thin stainless steel back plate (aluminum backplate option available for ultra-rugged versions).
• Fully sealed waterproof front panel (IP67) and reinforced wide-temperature touchpad for fast cursor positioning.
• Keyboard surface: P+R technology (PC keycaps + rubber) with durable coating and anti-microbial surface resistant to chemicals and liquids.
• Carbon contact + FPC carbon-on-gold key switch technology for tactile feel and long-term reliability.
• FN + Clean key combination allows cleaning without removing the keyboard from the PC to avoid accidental input.

Compliance & Rugged Standards

• Designed to meet MIL-STD-810H (wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, dust, fungus, solar radiation, etc.).
• Optional MIL-STD-461G for EMC/EMI/EMS/ESD compliance.
• RoHS compliant, CE and FCC certified.

Included / available documentation

• Mechanical drawing available for the product (mechanical drawing PDF provided by manufacturer).

Technical specifications

• Category: Ultra Thin Keyboard
• Model denomination: K-TEK-M340KP
• Key number: 102 keys
• Key travel: 1.50 mm ± 0.10 mm
• Actuation force: 1.2 N ± 0.2 N
• Key switch technology: Carbon contact + FPC carbon-on-gold key switch
• Switch life: > 5 million operations
• Backlight: Adjustable white backlight
• Interface: USB
• Protection level: IP67 (front panel)
• Mounting solution: Panel mount
• Operating temperature: -40 ℃ to +75 ℃
• Storage temperature: -50 ℃ to +85 ℃
• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
• EMC standard: EN 55032:2015, EN 55035:2017
• Lifespan: > 5 years
• MTBF: > 20,000 H
• MTTR: < 30 min
• Mechanical weight (approx.): ≈ 200 g
• Dimensions - Keyboard (L x W): 340.0 mm x 110.0 mm
• Dimensions - TouchPad (L x W): 85.0 mm x 60.0 mm
• Environmental / mechanical tests: humidity cycles (30–60 ℃, 95% RH, total 240 h), atmospheric pressure 57 kPa–106 kPa, vibration 0–2000 Hz (1 mm displacement, 70 m/s²), shock (pulse sawtooth, peak 40 g, 11 ms, triaxial impacts), temperature shock (-55 ℃ to 75 ℃ cycles), fungus test (672 h), salt spray and rain tests per manufacturer test procedures
• Applications: vehicle, aerospace, naval/maritime, radar/display consoles, portable rugged laptops, UAV ground stations, and other critical environments
• Patent: Patented keyboard (Patent number: 202420937267.2)
