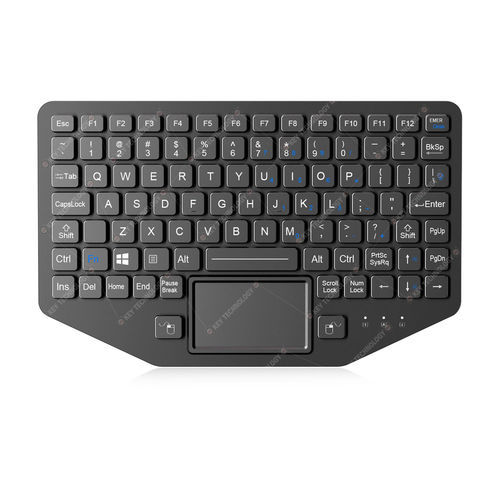

Panel-mount keyboard K-TEK-M275TP-FN-BL-KC-ANA-151B-AL

carbon contactwith 2 mouse keyswith Fn key

Overview
Ultra-thin, fully sealed industrial keyboard K-TEK-M275TP-FN-BL-KC-ANA-151B-AL with integrated sealed touchpad and adjustable white backlight. Designed for harsh and military-grade environments; top-panel mountable and USB interface.

Key features

• Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and carbon-on-gold key switch technology,
• P+R keys (PC keycaps + rubber) with anti-microbial coating and resistance to chemicals and liquids.
• Sealed rugged touchpad (400 DPI) with FN+Clean function for on-site cleaning without host disconnection.
• Adjustable white backlight and top-panel mounting solution for consoles and control stations.
• Designed and tested to relevant military standards for EMC/EMI/EMS/ESD and environmental ruggedness.

Applications

• Vehicle consoles, aerospace systems, naval/maritime equipment, radar displays, rugged portable laptops, UAV ground stations and other demanding industrial or defence environments.

Technical specifications

• Category: Ultra Thin Keyboard
• Commercial denomination (model/series): K-TEK M275TP
• Model/reference: K-TEK-M275TP-FN-BL-KC-ANA-151B-AL
• Keys: 92 keys (including 2 mouse buttons)
• Key travel: 1.50 mm ± 0.10 mm
• Key switch technology: Carbon contact + FPC carbon-on-gold key switch
• Actuation: 1.2 N ± 0.2 N; tactile, silent operation
• Switch life: >5 million operations
• Backlight: Adjustable white
• Interface: USB
• Protection: IP67 (front panel)
• Mounting: Top panel mount
• Dimensions (front panel): 283.0 mm × 177.7 mm
• Touchpad: Sealed, 400 DPI
• Electrical: DC +5V ±5%; Current ≤30 mA (backlight off), ≤300 mA (backlight on)
• OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android (uC/RTOS to be confirmed)
• Patent: Patent number 202420937267.2

Standards & environmental tests

• Meets MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H (temperature, low pressure, humidity, vibration, shock, rain, salt mist, dust, fungus, solar radiation, etc.).
• RoHS compliant, CE and FCC certified.
• Operating temperature: -40 °C to +75 °C; Storage: -50 °C to +85 °C.
• Humidity, vibration, shock and environmental exposure tests as specified for military-grade equipment.

Reliability & maintenance

• Product lifespan >5 years; MTBF >20,000 hours; MTTR
• Durable key construction and sealed touchpad reduce maintenance; FN+Clean enables cleaning without system shutdown.
