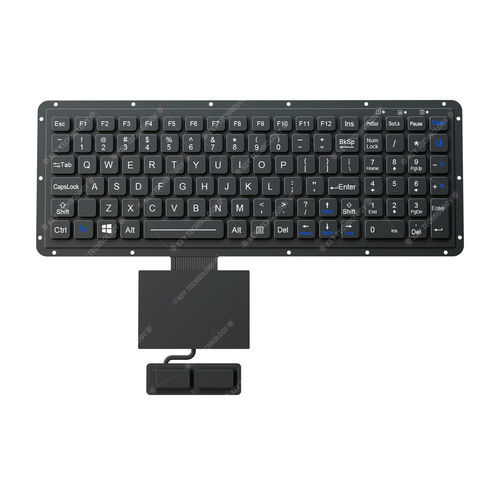

Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC+TP85-DML+2K

with mechanical keyswith 2 mouse keys102-key

102 keys IP67 fully sealed and durable embedded ultra thin rugged keyboard, with built-in ultra-thin Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, external with fully sealed waterproof and reinforced wide-temperature touchpad for fast cursor position, with independent numeric keypad on the right side of keyboard and 12 function keys(F1, F2, ... F12) on top line for easy operation. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology,with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: Keyboard: 315.0mm x 108.0mm (Front Panel) Touchpad: 85.0mm x 60.0mm (L x W)

1. Product Overview
This is a 102-key IP67 fully sealed ultra-thin embedded rugged keyboard with an external fully sealed waterproof wide-temperature touchpad. It is equipped with a built-in ultra-thin FPC, semi-reinforced stainless steel back plate, independent right numeric keypad and 12 top function keys. Adopting ultra-rugged P+R key structure and high-reliability carbon-on-gold switches, it provides silent and accurate input, anti-microbial & chemical-resistant surface, FN+Clean quick cleaning and adjustable white backlight. Compliant with MIL-STD-810F and optional MIL-STD-461G, it meets 10 key military standards and supports panel mounting for stable performance in extreme harsh environments.

2. Key Features
IP67 fully sealed front panel, waterproof and dustproof for harsh environments
Independent right numeric keypad + 12 top F-keys for efficient full-function operation
External fully sealed waterproof & reinforced wide-temperature touchpad for fast cursor control
Ultra rugged P+R structure (PC keycaps + Rubber) with durable anti-microbial coating
Ultra-thin design with FPC + semi-reinforced stainless steel back plate
Carbon contact & FPC carbon-on-gold switches, silent input with no key missing or sticking
FN + Clean combination for easy online cleaning without disconnecting from PC
Adjustable white backlight, standard panel mount solution
Resists most chemicals, liquids, fungi, salt mist, dust and extreme temperatures

3. Applications
Vehicle & on-board systems
Aerospace & aviation equipment
Naval & maritime vessels
Military & defense facilities
Radar & command consoles
Portable rugged laptops
UAV ground stations

4. Mechanical Data
Keys: 102 keys + 2 mouse buttons
Key technology: Carbon contact + FPC carbon-on-gold key switch
Key travel: 1.50mm ± 0.10mm
Actuation force: 1.2N ± 0.2N
Switch life: >5 million operations
Net weight: ≈200g
Keyboard dimensions: 315.0mm × 108.0mm
Touchpad dimensions: 85.0mm × 60.0mm
Mounting: Panel mount

5. Electrical & Compliance Data
Supply voltage: DC +5V±5%
Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC: EN 55032:2015, EN 55035:2017
Service life: >5 years
Interface: USB
OS support: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos to be confirmed)
Certifications: RoHS, CE, FCC
Optional: MIL-STD-461G (EMC / EMI / EMS / ESD)

6. Environmental Adaptability & Reliability
Protection level: IP67 (front panel)
Operating temperature: -40℃ ~ +75℃
Storage temperature: -50℃ ~ +85℃
Compliant with MIL-STD-810F (wide temp, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation)
Key lifespan: >5 million actuations
MTBF: >20000 hours
MTTR: Passes humidity, vibration, shock, temperature shock, fungus, salt spray, rain, dust and transport drop tests

7. Technical Specifications
Built-in ultra-thin FPC + semi-reinforced ultra-thin stainless steel back plate
P+R rugged key structure with carbon-on-gold switch technology
Meets 10 military core standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity
1.5mm key travel with excellent tactile feel, silent and error-free input
External sealed wide-temperature touchpad, adjustable white backlight, panel mount ready
