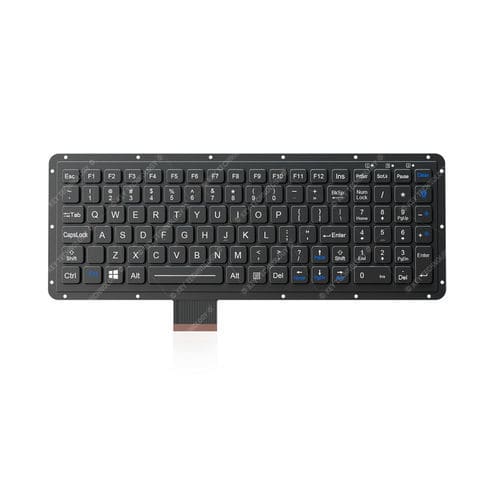

Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC-DM

with mechanical keys102-keywith Fn key

102 keys IP67 fully sealed and durable embedded ultra thin rugged keyboard, with built-in ultra-thin dot matrix Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, with independent numeric keypad on the right side of keyboard and 12 function keys(F1, F2, ... F12) on top line for easy operation. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology, with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 315.0mm x 108.0mm (Front Panel)

1. Product Overview
This is a 102-key IP67 fully sealed ultra-thin embedded rugged keyboard with built-in ultra-thin dot matrix FPC and semi-reinforced stainless steel back plate. It is equipped with an independent right numeric keypad and 12 top function keys, adopting P+R rugged key structure and high-reliability carbon-on-gold switches. The keyboard features silent & accurate input, anti-microbial & chemical-resistant surface, FN+Clean quick cleaning and adjustable white backlight. Compliant with MIL-STD-810F and optional MIL-STD-461G, it meets 10 key military standards and supports panel mounting for stable performance in extreme harsh environments.

2. Key Features
IP67 fully sealed front panel, waterproof and dustproof for harsh environments
Independent right numeric keypad + 12 top F-keys for efficient full-function operation
Ultra-thin embedded design with dot matrix FPC + semi-reinforced stainless steel back plate
Ultra rugged P+R structure (PC keycaps + Rubber) with durable anti-microbial coating
Carbon contact & FPC carbon-on-gold switches, silent input with no key missing or sticking
FN + Clean combination for easy online cleaning without disconnecting from PC
Adjustable white backlight, standard panel mount solution
Resists most chemicals, liquids, fungi, salt mist, dust and extreme temperatures

3. Applications
Vehicle & on-board systems
Aerospace & aviation equipment
Naval & maritime vessels
Military & defense facilities
Radar & command consoles
Portable rugged laptops
UAV ground stations

4. Mechanical Data
Key count: 102 keys
Key technology: Carbon contact + FPC carbon-on-gold key switch technology
Key travel: 1.50mm ± 0.10mm
Actuation force: 1.2N ± 0.2N
Switch life: >5 million operations
Net weight: 175g
Front panel dimensions: 315.0mm × 108.0mm
Mounting: Panel mount solution

5. Electrical & compliance data
Supply voltage: DC +5V±5%
Current rating: ≤30mA (backlight off); ≤300mA (backlight on)
EMC standard: EN 55032:2015, EN 55035:2017
Lifespan: >5 years
Interface: Dot matrix (USB/PS2 optional)
OS support: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos to be confirmed)
Certifications: RoHS compliant, CE and FCC certified
Optional: MIL-STD-461G (EMC / EMI / EMS / ESD)

6. Environmental adaptability & reliability
Protection level: IP67 (front panel)
Operating temperature: -40℃ ~ +75℃
Storage temperature: -50℃ ~ +85℃
Compliant with MIL-STD-810F (wide temp, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation)
Key lifespan: >5 million actuations
MTBF: >20000 hours
MTTR: Passes humidity, vibration, shock, temperature shock, fungus, salt spray, rain, dust and transport drop tests

7. Technical specifications
Built-in ultra-thin dot matrix FPC + semi-reinforced ultra-thin stainless steel back plate
P+R rugged key structure with carbon-on-gold switch technology
Meets 10 military core standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity
1.5mm key travel with excellent tactile feel, silent and error-free input
Independent numeric keypad, adjustable white backlight, panel mount ready
