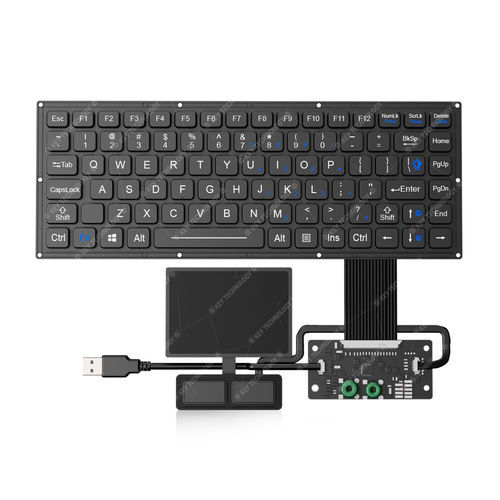

Panel-mount keyboard K-TEK-M280-FN-BL-FC-KC-ANA-151B+TP85+2K

carbon contactwith 2 mouse keys87-key

DESCRIPTION: 87 keys IP67 fully sealed and durable embedded ultra thin rugged military keyboard, with built-in ultra-thin Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, external with fully sealed waterproof and reinforced wide-temperature touchpad for fast cursor position, 12 function keys (F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology, with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand and dust, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.Patent No.: 202420937267.2
Dimensions: Keyboard: 280.0mm x 97.3mm (Front Panel) (L x W); TouchPad: 86.0mm x 61.0mm (L x W)

• Fully sealed and durable rugged keyboard, with fully sealed waterproof reinforced wide temperature touchpad for fast and accurate cursor position
• Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology.
• With 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise
• FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid misoperation or typing error.
• Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD
• Patented number: 202420937267.2
