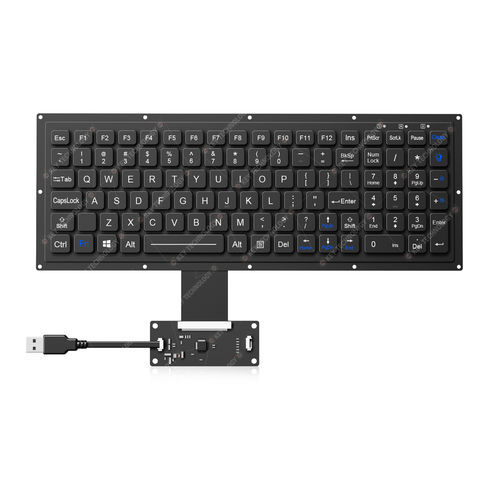

Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC-ML

carbon contact102-keyfor the aerospace industry

The K-TEK-M315KP-FN-BL-FC-KC-ML is an ultra-thin rugged keyboard designed for demanding environments, featuring 102 keys, IP67 front panel protection, and a fully sealed, durable embedded construction. It incorporates a built-in ultra-thin Flexible Printed Circuit and a semi-reinforced ultra-thin stainless steel back plate, with an independent numeric keypad on the right and 12 function keys (F1-F12) on the top line for easy operation. The keyboard surface utilizes ultra rugged P+R technology (PC keycaps + Rubber) and employs carbon contact and FPC carbon-on-gold key switch technology, providing 1.50mm±0.10mm key travel for excellent tactile feedback, fast and accurate data input, and silent operation. The keyboard is designed to prevent key value loss or stuck keys during operation and features a durable, anti-microbial coating that withstands most chemicals and liquids in harsh environments. FN + Clean combination keys allow for easy cleaning without disconnecting from the PC, helping to avoid mis-operation or mis-typing. The keyboard includes an adjustable white backlight and is panel mountable. It is engineered to meet MIL-STD-810H (covering high/low temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation, etc.) and optionally MIL-STD-461G-EMC-EMI-EMS-ESD, as well as critical military standards for reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

Dimensions

• Keyboard: 315.0mm x 108.0mm (Front Panel)

MECHANICAL DATA

• Key: 102 keys
• Key technology: Carbon contact + FPC carbon-on-gold key switch
• Key travel: 1.50mm±0.10mm
• Switch life: more than 5 million operations
• Actuation Force: 1.2N±0.2N (≈185g)

ELECTRICAL DATA

• Supply Voltage: DC +5V±5%
• Current Rating: ≤30mA when backlight is off, ≤300mA with backlight on
• EMC Standard: EN 55032:2015, EN 55035:2017
• Lifespan: >5 years
• Interface: USB
• OS Compatibility: All Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos-To be confirmed)

ENVIRONMENTAL ADAPTABILITY

• Operating temperature: -40℃ to +75℃
• Storage temperature: -50℃ to +85℃
• Humidity test: 30℃~60℃, 95%RH, 24h cycle, 10 cycles (total 240h)
• Atmospheric pressure: 57kPa~106kPa
• Vibration test: 0~2000Hz, displacement 1mm, acceleration 70m/s²
• Shock test: Pulse waveform (post-peak sawtooth), peak acceleration 40g, duration 11ms, X/Y/Z triaxial, 3 times per axis, 18 total impacts
• Temperature shock test: -55℃ for 2h, 75℃ for 2h, 3 cycles (12h total)
• Fungus test: (30±1)℃, (95±5)%RH, Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger, 28 days (672h)
• Salt spray test: 35℃, NaCl solution (5±1%, pH 6.6), 24h spray at 96kPa, 2 cycles (96h total)
• Rain test: Rainfall and blowing rain, wind velocity ≥18 m/s, duration 3h
• Dust test: Dust blowing, 10.6g/m³±7g/m³, 6h at 23°C, 1h at 60°C, then 6h dust blowing
• Transport package drop test: Weight ≤45.4kg, Max size <91.0cm, drop height 122cm, 26 drops (all surfaces, edges, corners)

RELIABILITY

• RoHS compliant, CE and FCC certified
• MIL-STD-810H (high/low temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation, etc.)
• Protection Level: IP67 (front panel)
• Key Lifespan: >5 million actuations
• MTBF: >20000H
• MTTR: <30min

APPLICATIONS

• Vehicle, aerospace, naval, maritime, radar, display console, portable rugged laptop, UAV ground station, etc.

Additional Features

• Independent numeric keypad on the right
• 12 function keys (F1-F12) on top line
• Ultra-thin rugged construction
• Anti-microbial and chemical-resistant surface
• FN + Clean keys for easy cleaning
• Adjustable white backlight
• Panel mount solution

Technical Specifications

• Category: Ultra Thin Keyboard
• Key Number: 102 keys
• Key Travel: 1.50mm±0.10mm
• Backlight: White
• Interface: USB
• Key Switch: Carbon contact + FPC carbon-on-gold
• Protection Level: IP67 (front panel)
• Mounting Solution: Panel mount
• Operating Temperature: -40℃~+75℃
• Application: Vehicle, aerospace, naval, maritime, radar, display console, portable rugged laptop, UAV ground station, etc.
