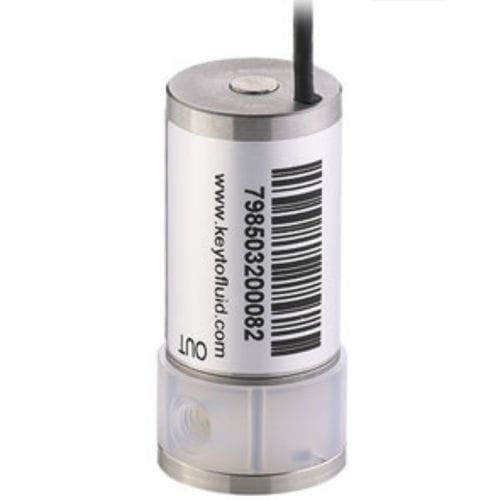

Diaphragm solenoid valve 1011-22-CAU/5NC14

direct-operated2-wayNC

1011-2 series solenoid valve is a series of diaphragm solenoid valve with 1.5mm orifice developed by Keyto independently. Its mainly function is switching on/off liquid path, to resist weak acid and bases, high temperature and high pressure resistance. The wetted material has multiple option types, depends on different reagents under different working condition. The life cycle can reach more than 2 million cycles. It’s a high precision, low cost and maintenance-free diaphragm solenoid valve. Feature of Temperature & Pressure Resistant Solenoid Valve Keyto proportional valve 1011 series has no dead volume inside the valve body. And different wetted materials (optional): ①Valve body: PTFE. ②Seal material: FFKM, FKM. It is also a high performance and strong solenoid product, strong acid and base corrosion resistance, high temperature and high pressure resistance. Specifications Tubing specification Threaded type; Connect the hose connector (according to the outer diameter of the pipe joint), or the pipe clamp connector (depending on the outer diameter of the pipe) Flow coefficient for liquid (CV) 0.028 Flow capacity for air (c) 0.093 Response time <30ms Internal volume 87μL Voltage fluctuation -10%~+10% Power Consumption 4.0W Reasons to Buy Keyto Temperature & Pressure Resistant Solenoid Valve Flow capacity CV for liquid is about 0.03; flow rate is about 5 ml/ s. Dead volume No dead volume inside the valve body. Wetted materials (optional) ①Valve body: PTFE ②Seal material: FFKM, FKM. Performance characteristics Long lifetime, high performance, strong acid and base corrosion resistance, high temperature and high pressure resistance.
