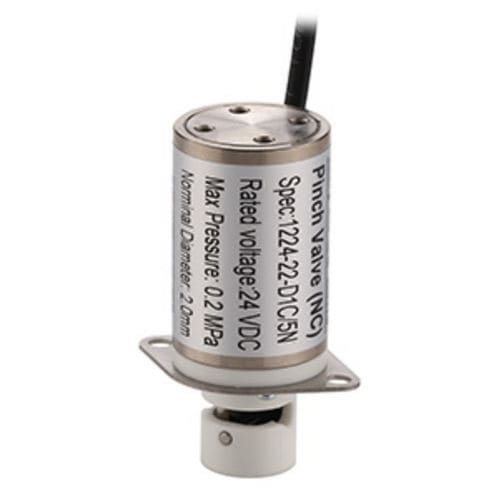

Pinch valve 1224-22

electricfor pure waterfor pipes

The 1224 series solenoid valve is a family of single channel pinch valves. This series solenoid valve is a high performance, low cost and maintenance free pinch valve with multiple model options, controlling the switch of flow path for different types of tube. The life cycle of valves can be more than 2 million. The tubing of solenoid valve is simple and easy to clean, applying to the application that test samples are with impurities and particulate matters and avoid cross-contamination among samples. Feature of Pinch Valve Keyto pinch valve has three series. The mainly different is the port size. The port size means the pipe diameter you want to used. In addition to port size, we have many functions to choose from. like single port or dual port，and different installations and different voltage to meet your unique needs. Low capacity 2.2mm X 4mm silicon tube, CV≥0.05, flow≥8.5mL/s (differential pressure 50KPa, 25℃, pure water). Silicon tube depends Wetted material depends on the silicon tube. Long lifetime Long lifetime, high performance.
