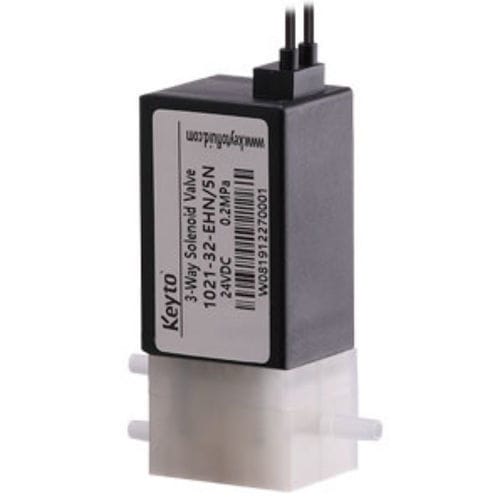

Diaphragm solenoid valve 1021-3 seriesdirect-operated3-waywater
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Medium
- water, air
- Body
- plastic, barbed
- Other characteristics
- high-flow, diaphragm
- DN
2 mm
(0.079 in)- Voltage
12 V, 24 V
- Pressure
Max.: 200,000 Pa
(29 psi)Min.: -70,000 Pa
(-10.2 psi)
Description
Structure - Direct-acting diaphragm, 3 way
No.of ports - 3（specified inlet and outlet）
Tube size - Suitable for 1.8-2.4mm inner diameter soft tube (shore hardness is about 55-75 degree)
Body material - PVDF
Diaphragm material - EPDM
Flow rate - 8.5g/s(25℃，50KPa ，H2O）
Power consumption - 4.2W
Main features -
1.Large flow rate, anti-crystallization
2.High precision, high pressure resistance
3.Long lifetime, full waterproofing options are available
Application -
1.Mediums including water, air, some organic solvents, acid-base reagents etc.
2.Suitable for the applications with many impurity crystallization
