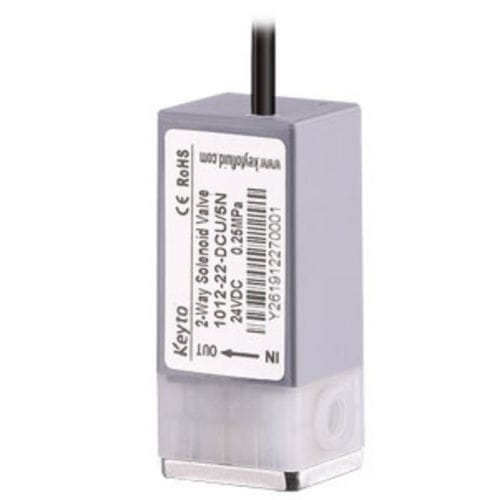

Diaphragm solenoid valve 1012-22-D series

direct-operated2-wayNC

The 1012-2 Series solenoid valve is 1.5mm orifice diaphragm solenoid valve developed by Keyto independently, its mainly function is to switch on and off the liquid, be resistant to strong acid and alkali corrosion, high temperature and high pressure. This Series have 8Kg and 15Kgoption types, and they are suitable for different reagents in different condition. The life cycle of valves can be more than 2 million times. It's a high precision, low cost and maintenance-free diaphragm solenoid valve. Feature of Temperature & Pressure Resistant Solenoid Valve Keyto proportional valve 1012 series has no dead volume inside the valve body. It has multiple options for wetted materials: ①Material of valve body: Improved PTFE, PTFE; ②Seal material: FFKM, FKM; It is als a long life cycle, and high performance solenoid product which can resistant to strong acid and alkali corrosion, high temperature and high pressure. Reasons to Buy Keyto Temperature & Pressure Resistant Solenoid Valve Flow capacity CV is about 0.03; flow rate is about 5.1mL/s (Pressure differential 50Kpa, 25ºC, pure water). Small dead volume No dead volume inside the valve body. Multiple options for wetted materials ①Material of valve body: Improved PTFE, PTFE ②Seal material: FFKM, FKM Long life cycle high performance, resistant to strong acid and alkali corrosion, high temperature and high pressure. The 1012 series solenoid valve by Keyto is a 1.5mm orifice diaphragm valve designed for on/off liquid control, with resistance to strong acid, alkali, high temperature, and high pressure. Available in 8Kg and 15Kg options, it accommodates various reagents and conditions.
