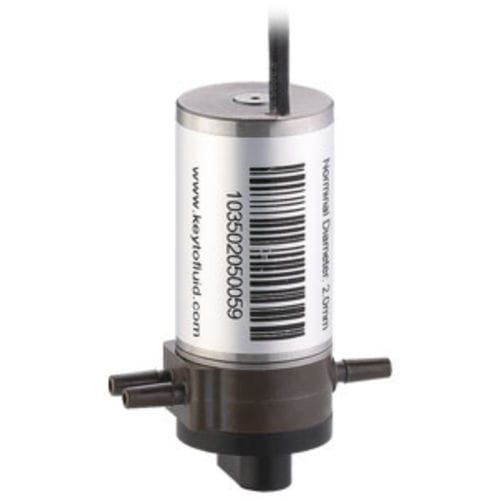

Diaphragm solenoid valve 1022-3 series

direct-operated3-waywater

Structure - Direct-acting diaphragm, 3 way No.of ports - 3（specified inlet and outlet） Tube size - Suitable for 1.8-2.4mm inner diameter soft tube (shore hardness is about 55-75 degree) Body material - PPS Diaphragm material - EPDM,FFKM Flow rate - 6.8g/s（ 25℃，50KPa ，H2O） Power consumption - 3.5W Main features - 1.High flow, cost-effective 2.High pressure resistance, long lifetime 3.Small internal volume, small dead volume Application - 1.Mediums including water, air,organic solvents,ink and acid-base reagents etc. 2.Suitable for working conditions such as sampling module, cleaning module, dilution module and waste liquid draining module etc.
