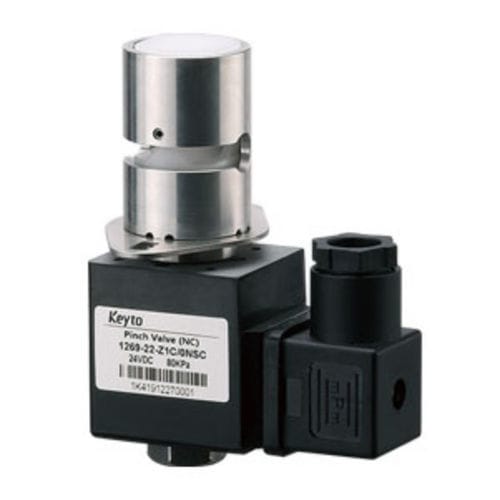

Pinch valve 1269-22-Z1C/0NSC

electricfor pure waterfor pipes

The 1269 series solenoid valve is a single-channel pinch valve with a large pipe diameter, designed based on customer requirements. With a service life of over 2 million cycles, it offers high performance and low cost. Its simple and easy-to-clean tubing design effectively handles samples containing impurities or particles. This valve is ideal for applications demanding reliable flow path control with minimal maintenance. Feature of Pinch Valve Keyto pinch valve has three series. The mainly different is the port size. The port size means the pipe diameter you want to used. In addition to port size, we have many functions to choose from. like single port or dual port，and different installations and different voltage to meet your unique needs. Silicon tube specification 6mm X 9mm, shore hardness: 60. Flow rate 6mm X 9mm silicon tube, CV≥0.05, flow rate≥8.5mL/s (differential pressure 50KPa, 25℃, pure water). Silicon tube depends Wetted material depends on the silicon tube. Performance characteristics Long lifetime, high performance.
