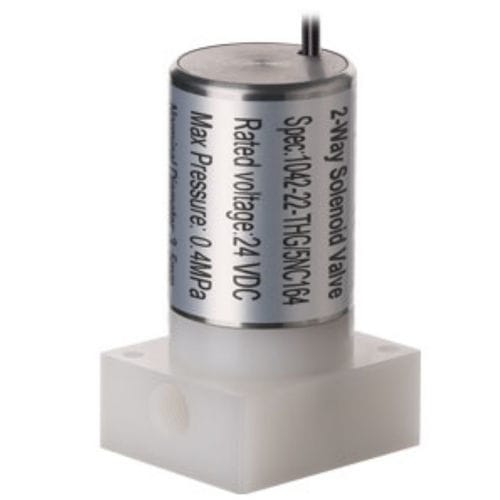

Diaphragm solenoid valve 1042-22-THG/5NC164

direct-acting2-wayNC

The solenoid valve of 1022/1032/1042 series is a family of diaphragm valve with 2/2.5/3.5mm orifice diameter which developed by keyto. Its function is controlling the on/off of fluid flow path. This series solenoid valve is a high performance, low cost and maintenance free diaphragm valve with multiple model options, which are suitable for different reagents under different working conditions. Feature of Direct Acting Solenoid Valves 1022/1032/1042 Keyto 1022/1032/1042 series has a small dead volume: zero dead volume inside the solenoid valve. And multiple options for wetted material:① Body Material: PPS POM PTFE② Seal Material: EPDM FFKM FKM. It’s a long-lifetime, high-performance solenoid product. Large flow CV≥0.04; flow≥6.8/8.5/8.5mL/s (pressure drop 50KPa, 25℃, pure water). Small dead volume zero dead volume inside the solenoid valve. Multiple option for wetted material ①Body Material: PPS POM PTFE ②Seal Material: EPDM FFKM FKM Long lifetime Long lifetime, high performance. The 1042 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 4.5-5mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.
