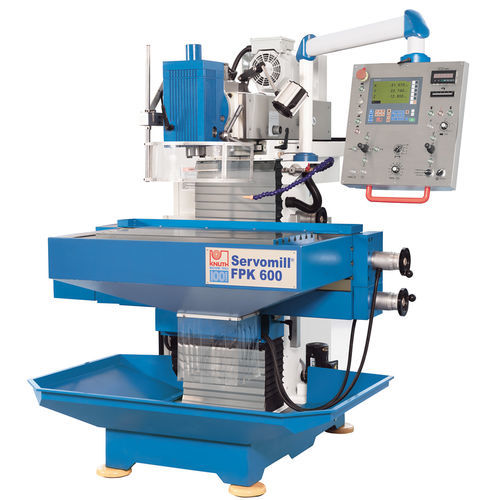

3-axis milling machine Servomill® FPK 600
horizontalverticalservo-driven

3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven
3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven
3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven - image - 2
3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven - image - 3
3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven - image - 4
3-axis milling machine - Servomill® FPK 600 - Knuth Machine Tools - horizontal / vertical / servo-driven - image - 5
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical, horizontal
Drive system
servo-driven
Applications
for the mold industry
Other characteristics
precision, CE, high-rigidity, compact
X travel

600 mm
(23.62 in)

Y travel

450 mm
(17.72 in)

Z travel

450 mm
(17.72 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 40 rpm
(251.327 rad.min-1)

Description

This versatile tool and milling machine has become indispensable in the mechanical manufacturing of tools and molds. Its compact design offers a great deal of flexibility while being very easy to operate. This has proven highly effective and is given a modern interpretation here. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill makes the advantages of CNC large-scale technology accessible even without programming. The machines are mainly used in toolmaking, production and training. • Servo feed technology with electronic handwheels • Ball screws in all axes • 3-fold electronic stop • Large vertical console and work table • Vertical and horizontal spindle • Infinitely variable spindle speed
