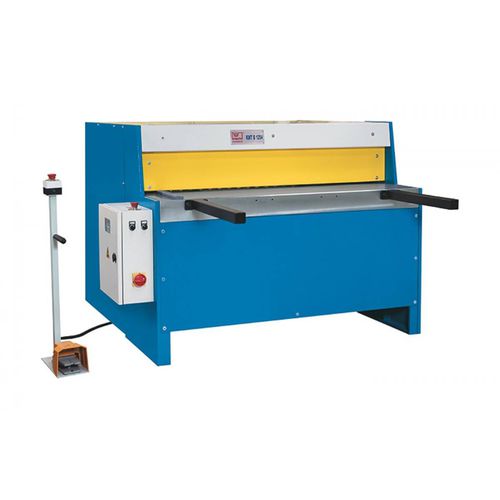

Guillotine shear KMT B 1254

electricsheet metalmotorized

The KMT B series is ideal for processing long or thick sheet metal in metalworking shops, for repairs and in individual production. The guillotine shears with motor drive have a modern, high-quality and very stable construction. The guided cutter bars also enable cuts with little twist in the workpiece. The cutting length can be precisely positioned manually on the backgauge. Solid steel weldment Rugged long support arms Mobile control unit with foot switch Manual back gauge with counter (back-of-machine operation) Working area Cutting angle - 2,4 deg Strokes per minute (automatic mode) - 27 H/min Knife length - 1350 mm Work table height - 830 mm Support arms - 600 mm Number of support arms - 2 positions Back Gauge Rear stop - 630 mm Drive capacity Motor rating main drive - 4 kW Measures and weights Overall dimensions (length x width x height) - 1,72 m x 1,6 m x 1,19 m Weight - 1185 kg Machine Frame and Drive System The machine frame is made of a rigid, solid steel weldment A rubber-coated hold-down automatically fixates the plate A small knife angle ensures cut accuracy Material Support The rigid side angle stop simplifies alignment of the plate to the cut line Rugged support arms ensure a good hold of large plates on the support table Operation and Ergonomics Illuminated cut line ensures good visibility of marking The mobile control unit features a foot switch, so the operator has both hands free Back Gauge Manual back gauge with counter The back gauge is robust and rigid and can handle any challenges in everyday operations The work area at the back gauge is covered with safety panels Standard Equipment Foot pedal with emergency stop switch
