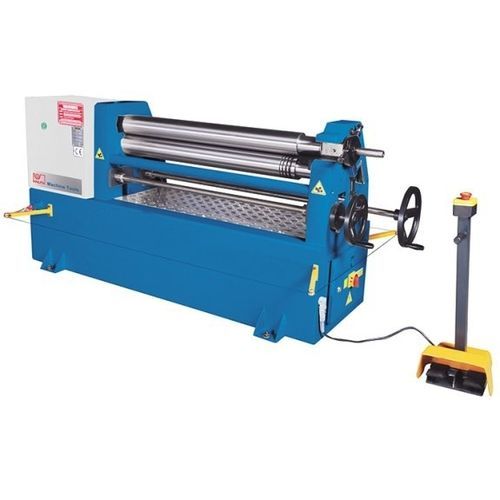

3-roller plate bending machine KRM T 20/4,0

electricconicalasymmetrical

KRM is a series of heavier medium capacity round bending machines for workpieces up to 2000 mm (78.74 in.) in length. The machines have a solid, closed machine frame and you can adjust the rear roller manually by hand or optionally with a motor. With special features such as conical bending and pre-bending, the models in this series are suitable for a wide range of applications in individual production. Main motor with braking Hardened rollers with wire insertion grooves Manual rear roller adjustment (optionally motor-driven) Working area Working length - 2050 mm Roll diameter - 140 mm Roller speed - 3,5 m/min Wire grooves diameter - 4/7/9/13 mm Drive capacity Motor rating main drive - 2,2 kW Measures and weights Overall dimensions (length x width x height) - 3,2 m x 0,75 m x 1 m Weight - 1650 kg Rigid, seamless machine frame made of ductile cast-iron Hardened rollers, suitable for stainless steel Main motor with brake system for exact bending Pull-out top roller with eccentric lock and safety switch Bottom and rear rollers feature wire insertion grooves Conical bending feature is included in standard equipment Hand wheel for rear roll feed Quick adjusting rolls (motor-driven, option) Mobile control panel with foot switch for left/right rotation Standard Equipment Conical bending feature Hardened rollers Wire insert groove Operator instructions Emergncy stop safety rope Seoarate control panel with foot switch Side cover
