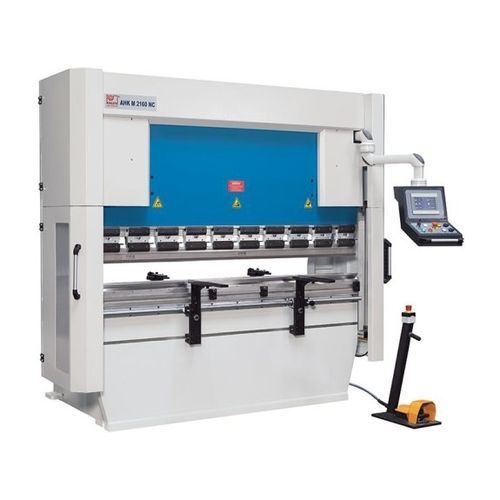

Hydraulic press brake AHK M 1540

NCautomaticprecision

The AHK M series was developed as a modern, inexpensive NC alternative to CNC press brakes. Many operators are familiar working without CNC programming, and this model series combines proven technology with modern safety standards. The back gauge in the X- and R-axes and the depth gauge in the cylinders can be positioned directly using the touchscreen, or bending sequences can be stored in the NC control for automatic operation. The series is convincing in the production of workpieces with recurring materials and contours. Stress-relieved welded steel construction Top beam with torsion shaft NC control with touch-screen HMI Back gauge with X and R axes European-style male die Machine Frame and Male Die The machine frame is made of a high-precision, stress-relieved steel weldment and features a rigid bending bar and hydraulic cylinders on both sides A large throat and narrow table ensure plenty of free space to accommodate complex bending sequences Hydraulics The hydraulic unit with reservoir is placed in the top part of the machine frame to save space and add to the rigidity of the construction Precise upper beam positioning is ensured by a torsion shaft that connects the depth stops of both cylinders Front Support Arms Each support arm can be adjusted in height and is extremely sturdy A stop ridge on the supporting surface helps with workpiece alignment Bending Tools Promecam tool mounts to accommodate an extensive selection of bending tools Manual quick-action clamping system for tool mount shortens tool changing times With 4 bending dies the die can handle a wide spectrum of workpieces
