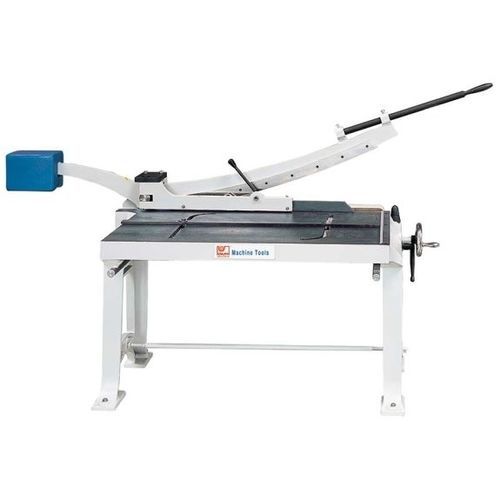

Manual shear KHS E 1000

sheet metalguillotine

The KHS is the classic manual plate shears. And something like this should not be missing in any locksmith's shop, in order to separate something with a lot of momentum from time to time. The cast frame, stop and blade are so robust and solid that several generations can work with them. Adjustable table stop Manually adjustable back-gauge Hardened cutters Counterweight to improve operator comfort Working area Rear stop - 0 mm - 580 mm Table dimensions - 605 mm x 1100 mm Measures and weights Overall dimensions (length x width x height) - 1,3 m x 1 m x 1,5 m Weight - 460 kg Simple and solid cast-iron construction Large steel plates can be pushed through Adjustable cutting stop Counterweights for improved operator comfort Standard Equipment Operator manual Length stop
