Electromagnetic flow meter FLEXMAG 6100

volumefor liquidsDN8 - 1/4"

Overview

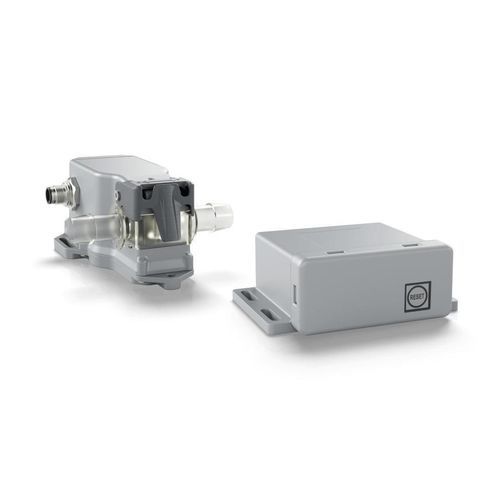

The FLEXMAG 6100 is an electromagnetic flowmeter designed for single-use biopharmaceutical processes, including filtration, chromatography and buffer/media preparation. It comprises a sensor, a disposable single-use flow tube and a signal converter. The sterile, biocompatible flow tube is gamma- or X-ray-sterilisable and supplied in double-sealed individual pouches with a single barb fitting for integration into single-use assemblies.

Key benefits

• High-accuracy flow measurement across a wide range without need for recalibration
• Disposable flow tube sterilised by gamma or X-ray, available in sizes 1/4 in to 1 in (ID)
• Wetted materials compliant with biopharmaceutical requirements
• Advanced diagnostics and embedded webserver for configuration and troubleshooting
• EtherNet/IP™ digital communication and galvanically isolated 4…20 mA output (active/passive)

Features & Options

• Disposable flow tube: manufactured in ISO 7 clean room, biopharma-compatible materials, double-sealed individual packaging for single-use workflows
• One sensor fits multiple tube diameters
  • Flow tube S (small): 1/4 in (ID): 0.015–3 l/min
  • Flow tube M (medium): 3/8 in (ID): 0.04–14 l/min; 1/2 in (ID): 0.09–20 l/min
  • Flow tube L (large): 3/4 in (ID): 0.16–62 l/min; 1 in (ID): 0.25–75 l/min
• Flow tube sterilisation: gamma or X-ray up to 50 kGy
• Measurement accuracy: ±1% of measured value + 1 mm/s
• Compact sensor footprint and full-bore design for low pressure loss
• Bi-directional measurement and maintenance-free operation; factory calibrated
• Interfaces: EtherNet/IP™ and embedded webserver for configuration; galvanically isolated 4…20 mA output (active/passive)
• Diagnostics: built-in LED and functions such as clamp detection and empty-pipe detection

Typical applications

• Biopharmaceutical industry
• In-line flow monitoring in downstream processes
  • Normal filtration
  • Tangential flow filtration
  • Chromatography
  • Buffer and media preparation
  • General monitoring and control of liquid transfer

General information (table)
Product type: Flowmeter
Product family name: FLEXMAG
Product positioning: For single-use biopharmaceutical applications
Measurement principle: Electromagnetic
Measured media: Liquids

Communication (table)
Analogue outputs: 4…20 mA
Digital outputs: EtherNet/IP™

Technical specifications

• Product: FLEXMAG 6100 electromagnetic flowmeter for single-use biopharmaceutical applications
• Components: sensor, disposable single-use flow tube, signal converter
• Flow tube sizes: 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in (ID)
• Flow ranges by tube size: 1/4 in: 0.015–3 l/min; 3/8 in: 0.04–14 l/min; 1/2 in: 0.09–20 l/min; 3/4 in: 0.16–62 l/min; 1 in: 0.25–75 l/min
• Sterilisation: flow tube gamma or X-ray sterilisable up to 50 kGy
• Wetted materials and packaging: biopharma-compliant materials, ISO 7 clean room manufacture, double-sealed pouches
• Accuracy: ±1% of measured value + 1 mm/s
• Installation: reduced sensor footprint, full-bore design, bi-directional measurement, low pressure loss
• Maintenance: maintenance-free; factory calibrated (no recalibration needed)
• Outputs & communication: galvanically isolated 4…20 mA (active/passive); EtherNet/IP™; embedded webserver
• Diagnostics: advanced diagnostics with LED indicator (clamp detection, empty-pipe detection)
