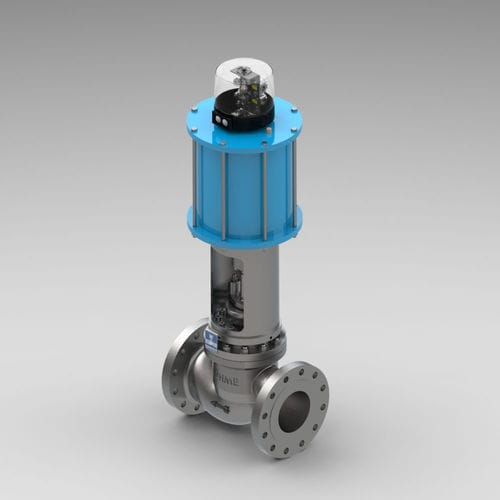

Plug valve KVL
pneumaticshut-offdistribution

plug valve
plug valve
plug valve
plug valve
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
pneumatic
Function
shut-off, distribution
Applications
chemical, industrial, process, liquid, actuator
Other characteristics
high-performance, automatic, heavy-duty, emergency, quick-closing, thermal
DN

Min.: 25 mm
(0.984 in)

Max.: 300 mm
(11.811 in)

Pressure

60 bar
(870.2 psi)

Temperature

Min.: 60 °C
(140 °F)

Max.: 280 °C
(536 °F)

Description

QUICK-CLOSING VALVE TYPE KVL Petrochemical and chemical processes require a broad range in regards to the media resistance as well as the thermal application conditions. Due to its application-specific design, the valve type KVL offers a safe and reliable solution to shut-off process media even under most extreme conditions. Because of its extraordinary reliability, the valve is qualified for emergency shut-off application (ESD) as well. As a prerequisite for its use in refineries and petrochemical plants, this valve type guarantees absolute external tightness within systems certified. Fuels: liquid & gaseous Applications: Refineries & Petrochemical Plants, Chemical Industry, Pipeline & Gas Distribution Systems, Industrial Combustion, Air Separation Plants – PSA NOMINAL SIZE: DN 25 TO DN 300 OPERATING PRESSURE: MAX. 60,0 BAR G OPERATING TEMPERATURE: MIN – 60°C MAX. + 280°C YOUR BENEFITS Closing time < 1 sec High safety level through zero leakage Heavy duty design for highest number of operating cycles High-performance valve with a extended service life Optimised for use with chemical process media with a broad temperature range H2-ready OPERATION DETAILS The linear movement of the valve stem is generated by a strong pneumatic actuator which is energized by a solenoid valve. The automatic forced quick-closing function – in less than 1 second – is ensured by a heavy-duty spring. The sealing face is perfectly designed and equipped with a finish ensuring premium tightness (leakage rate A acc. EN 12266-1).
