Stirred-tank reactor VGR series

laboratoryfor the pharmaceutical industryfor chemicals

Short description

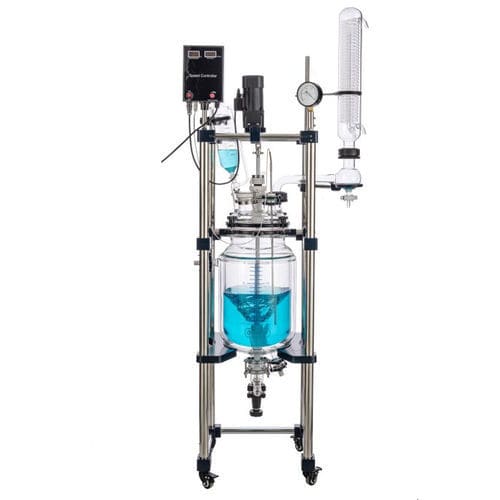

Jacketed glass reactors (VGR Series) available in effective volumes from 5 L to 100 L. Constructed from Pyrex 3.3 high-borosilicate glass with SUS 304 holders and PTFE seals; available in jacketed (D) and triple-layer (T) configurations.

CHARACTERISTICS OF USES
Reagents are contained in the inner vessel of the double/triple-layer glass reactor. The jacket/interlayer can be circulated with coolant, water or high-temperature fluid for controlled heating or cooling. The system supports vacuum or atmospheric operation and variable mixing speeds. Suitable for laboratory research, pilot trials and small-scale production in chemistry, fine chemical engineering, biopharmaceuticals and new material synthesis. Can be integrated with vacuum pumps, low-temperature circulators, circulating coolers and closed cooling/heating systems.

Glass fermenter
Features

• Digital temperature setting and display for precise control and simple operation.
• High borosilicate glass (Pyrex 3.3) with stable chemical and physical properties.
• Wide operational temperature capability (low temperatures to −80°C; features indicate up to 300°C; specification table lists −80°C to 200°C).
• Operable at atmospheric pressure or under vacuum (vacuum degree below 0.095 MPa in quiet condition).
• Digital mixing speed display with frequency-conversion speed control for stable stirring (50–500 rpm).
• Proprietary shaft sealing and PTFE-coated impeller; PTFE (Teflon) seals on shaft and cover.
• Corrosion-resistant, no-dead-space discharge valve for efficient drainage.
• Interlayer (jacket) can be fully drained after reaction.
• Compact, practical overall design suitable for laboratory and pilot environments.

Specifications
Model | VGR-05D / VGR-05T | VGR-10D / VGR-10T | VGR-20D / VGR-20T | VGR-30D / VGR-30T | VGR-50D / VGR-50T | VGR-80D / VGR-80T | VGR-100D / VGR-100T
Effective volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100
Jacketed volume (L) | 1.5 | 3 | 6 | 10 | 16 | 24 | 30
Jacket heat transfer area (m²) | 0.13 | 0.22 | 0.32 | 0.46 | 0.65 | 0.9 | 1.09
Condenser heat transfer area (m²) | 0.12 | 0.2 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5
Glassware Material | Pyrex 3.3 | Pyrex 3.3 | Pyrex 3.3 | Pyrex 3.3 | Pyrex 3.3 | Pyrex 3.3 | Pyrex 3.3
Holder Material | SUS 304 | SUS 304 | SUS 304 | SUS 304 | SUS 304 | SUS 304 | SUS 304
Temperature tolerance (°C) | -80 ~ 200 (table); features mention up to 300°C
Operation Pressure (MPa) | Vacuum or atmospheric pressure
Motor Power (W) | 90 | 90 | 90 | 90 | 140 | 250 | 250
Speed adjustment | Frequency control (digital) for all models
RPM | 50 ~ 500 for all models
Stirring port (Flange) | 50# (up to VGR-50) | 60# (larger models)
Sensor port | 24# for all models
Condenser (milling mouth) | 35# / 50# / 50# / 50# / 50# / 50# / 50#
Liquid feeding | 24# / 34# / 34# / 34# / 34# / 34#*2 / 34#*2
Constant pressure funnel | 29# / 40# / 40# / 40# / 40# / 40# / 40#
Solid feeding (Flange) | / | 80# | 80# | 80# | 80# | 95# | 95#
Outlet/Inlet interface | DN15 for all models
Seal Material | PTFE (Teflon) for all models
Power Supply | 220V 50Hz for all models
Discharge valve | No-effusion side discharge valve (design without dead space)
Ground clearance | 400mm / 400mm / 370mm / 360mm / 320mm / 400mm / 350mm
Temp. sensor material | Stainless steel coated with fluorine, double corrosion protection
Stirrer | Clover rotary vane impeller, stainless steel with PTFE coating
Dimensions (L×W×H mm) | 460×380×1680 | 460×380×1680 | 520×520×2030 | 520×520×2150 | 570×570×2250 | 670×670×2600 | 670×670×2600
Remark | “D” indicates jacketed glass reactor; “T” indicates triple-layer glass reactor

caractéristiques / spécifications techniques

• Series / Model name: VGR Series
• Effective volume range: 5 L to 100 L
• Glass material: Pyrex 3.3 (high borosilicate)
• Holder material: Stainless steel SUS 304
• Seals: PTFE (Teflon)
• Temperature capability: feature range −80°C to 300°C (table lists −80°C to 200°C)
• Pressure: vacuum capable or atmospheric operation (vacuum degree below 0.095 MPa in quiet state)
• Mixing: frequency-conversion control, 50–500 rpm, digital speed display
• Power supply: 220V 50Hz (standard)
• Configurations: jacketed (D) and triple-layer (T) glass reactors
