Liquid filter GVF series

membranevacuumlaboratory

Overview

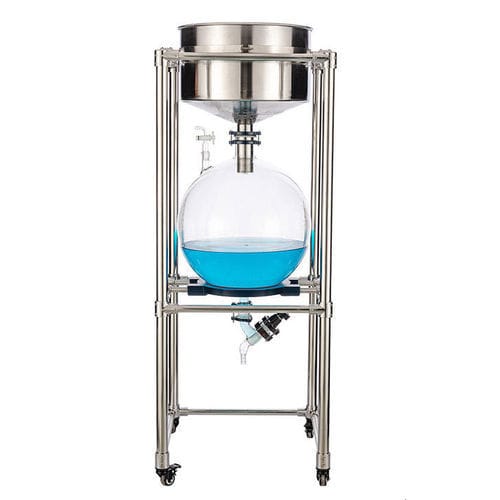

The GVF Series glass vacuum filter is a mobile unit for solid-liquid separation, material drying and removal of impurities. Filter media (cloth, mesh, membrane) are positioned on the funnel; a vacuum pump connected to the glass suction bottle draws filtrate through the filter layer into the bottle. Filtration fineness depends on the chosen filter media specifications.

Features

• Glass suction bottle made from high borosilicate glass GG-17 (thermal expansion coefficient 3.3)
• Funnel manufactured in 304 stainless steel with Ø4 mm holes drilled at funnel bottom
• Frame: aluminum alloy combined with stainless steel
• Fittings and connectors in 304 stainless steel; glass discharge valve with PTFE core where specified
• Mobile base with universal wheels and brake for whole-unit movement

Specifications

• Model GVF-5L: Flask volume spherical 5L; Funnel size 300×150 mm; Suction port Ø80 flange; Vacuum connection 24# (OD 12 mm); Discharge: Φ45 mm ball convex glass + PTFE core, Φ20 discharge port; Discharge height 450 mm; Dimensions 490×490×1500 mm; NW/GW 20/45 kg
• Model GVF-10L: Flask 10L; Funnel 350×220 mm (21L); Suction port Ø80 flange; Vacuum 24# (OD 12 mm); Discharge: Φ45 mm glass+PTFE, Φ20 port; Discharge height 450 mm; Dimensions 500×520×1230 mm; NW/GW 24/50 kg
• Model GVF-20L: Flask 20L; Funnel 350×220 mm (21L); Suction port Ø80 flange; Vacuum 24# (OD 12 mm); Discharge: Φ45 mm glass+PTFE, Φ20 port; Discharge height 450 mm; Dimensions 500×520×1330 mm; NW/GW 27/53 kg
• Model GVF-30L: Flask 30L; Funnel 450×250 mm (39L); Suction port Ø80 flange; Vacuum 24# (OD 12 mm); Discharge: Φ33 mm glass+PTFE, Φ34 port; Discharge height 350 mm; Dimensions 580×600×1530 mm; NW/GW 35/64 kg
• Model GVF-50L: Flask 50L; Funnel 450×250 mm (39L); Suction port Ø80 flange; Vacuum 24# (OD 12 mm); Discharge: Φ45 mm glass+PTFE, Φ20 port; Discharge height 350 mm; Dimensions 580×600×1530 mm; NW/GW 38/67 kg

Technical characteristics

• Glass material: GG-17 high borosilicate (expansion coefficient 3.3)
• Rated vacuum achievable: 0.098 MPa
• Flask ports: standard 3 ports
• Mobility: universal wheels with brake
• Frame finish: plastic or PTFE spray; main bracket: tray
• Applicable operations: laboratory and small-scale production filtration, solid-liquid separation, material drying and impurity removal
