Continuous reactor VGR-DL

laboratoryfor chemicalsmanual

Product overview

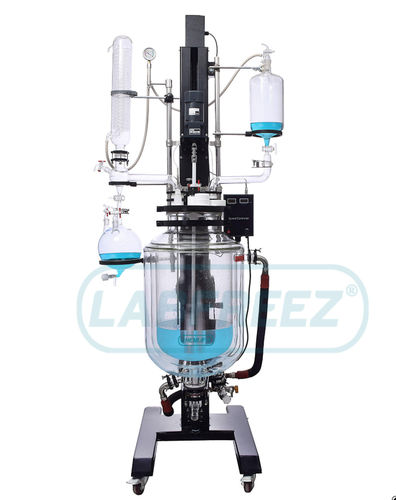

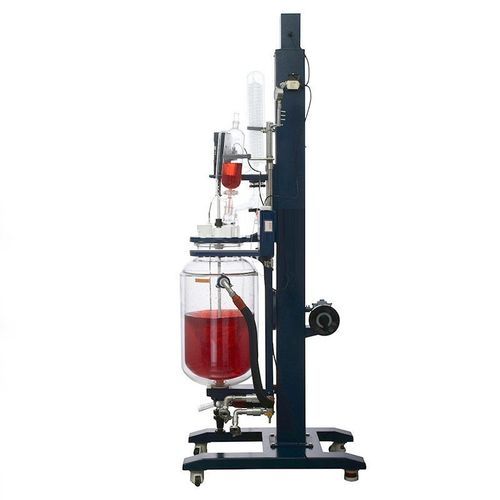

Elevating and rotary jacket glass reactor with manual lift and 120° rotation. Designed for laboratory chemical reactions, heating/cooling circulation and mixing. Available in single-, double- and triple-jacket configurations; explosion-proof option available.

Characteristics

• Reaction vessel can lift, lower and rotate 120° for operation and cleaning
• Flange sealing on glass interfaces avoids vacuum silicone seals and facilitates opening/closing
• All flange interfaces; withstands positive pressure up to 0.03 MPa
• Explosion-proof option available

Model description
S: single-layer glass reactor
D: double-layer jacket glass reactor
T: triple-layer jacket glass reactor
L: manual lift & rotary type glass reactor

Specifications
Model series: VGR-5SL, VGR-10SL, VGR-20SL, VGR-30SL, VGR-50SL; VGR-5DL, VGR-10DL, VGR-20DL, VGR-30DL, VGR-50DL; VGR-5TL, VGR-10TL, VGR-20TL, VGR-30TL, VGR-50TL
Reaction vessel material: High borosilicate glass
Temperature sensor material: Stainless steel clad with fluorine, double anti-corrosion
Temperature range: -80 ~ 200 °C
Speed control method: Frequency speed control
Allowable jacket temperature difference: 60 °C (TL series, triple layer); 110 °C (DL series, double layer)
Inlet/outlet liquid circulation nozzle: DN15
Power supply: 220 V / 50 Hz
