Circulating water bath Hydro H 8 A

boilinglaboratoryheated

Description

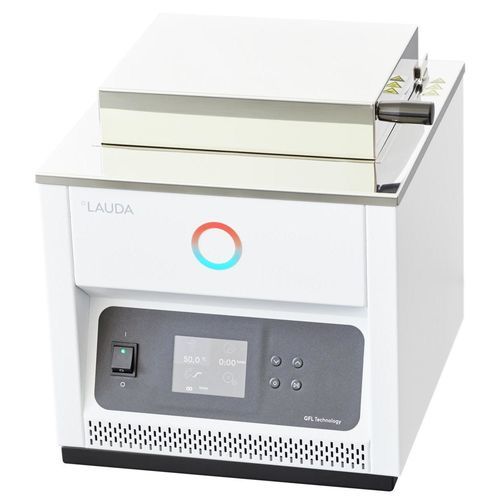

The LAUDA Hydro H 8 A is a stainless-steel water bath designed for laboratory and industrial temperature applications. With a bath volume range of 3.8–7.0 L, a working temperature range from 25 to 100 °C and a temperature stability of ±0.1 K, it supports processes including applications in the boiling range. Intuitive operation is provided via a TFT colour display with temperature readout in °C and °F.

Features

• Easy-to-operate water bath with digital setpoint control
• Timer adjustable in hours (h) and minutes (min)
• Adjustable trigger points for over- and under-temperature alarms up to ±10 K
• Optical and acoustic alarms for low-liquid level and temperature deviations
• Three application-specific timer functions
• Bath vessel with drain valve for safe and convenient emptying
• Supplied with lid and perforated floor (sieve plate)
• TFT display showing all process data clearly (°C / °F)
• Membrane keypad with clear symbols for reliable operation
• Sensor break/short-circuit monitoring
• Integrated circulation system to improve spatial temperature stability
• Double-walled stainless-steel heat-insulating lid with inner curvature to prevent condensate dripping into vessels
• Temperature setting and display in 0.1 °C increments
• 1-point digital temperature controller with electronic monitoring
• Bath interior, cover, sieve plate and heating element made of stainless steel
• Design prevents condensate from dripping back into samples

Working range

• Minimum working temperature: 25 °C
• Maximum working temperature: 100 °C
• Temperature stability: ±0.1 K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 1 kW
Bath volume (min/max): 3.8 / 7.0 L
Dimensions (WxDxH): 340 x 395 x 345 mm
Weight: 12 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Accessories (examples)

• Bottle rack with 12 openings Ø56 mm
• Stainless-steel test tube racks (various variants)

Characteristics / technical specifications

• Brand: LAUDA
• Model: Hydro H 8 A
• Part no.: L002906
• Working temperature range: 25 ... 100 °C
• Temperature stability: ±0.1 K
• Heater power: 1 kW (max.)
• Bath volume (min/max): 3.8 / 7.0 L
• Dimensions (WxDxH): 340 x 395 x 345 mm
• Weight: 12 kg
• Power supply / plug: 230 V; 50/60 Hz / CEE7/7
