Laboratory water bath Hydro H 9 V

benchtopheatedthermostatic

Product description

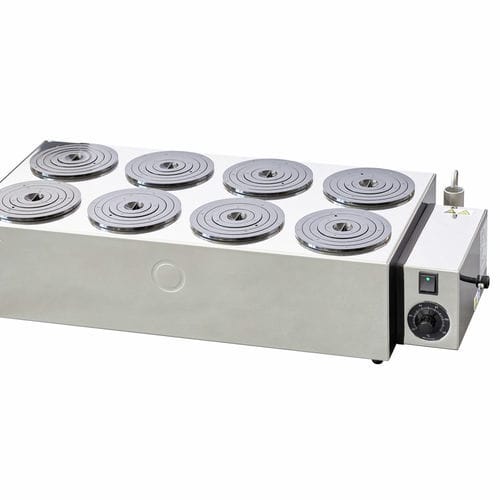

LAUDA Hydro vaporization water baths operate between 25 and 100 °C. The bath opening diameter can be adjusted in approx. 20 mm steps using the multi-piece ring set (nine rings). Models H 11 V and H 19 V are designed for protected use in fume cupboards. Stainless steel housing and components enable evaporation with chemically aggressive media.

Features

• Vaporization water bath for gentle evaporation work
• Water deficiency protection
• Removable multi-part ring covers for variable opening diameters
• Temperature adjustment via rotary knob with scale
• Adjustable water level regulator, sieve bottom and ring set supplied as standard
• Ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element in stainless steel
• Stainless steel support rods (600 mm length, Ø 12 mm) included

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 3 ± K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 3 ± K
Heater power (max.): 1.5 kW
Max. power consumption: 1.5 kW
Current consumption: 16 A
Bath opening (Ø): 131 mm
Number of bath openings: 6
Dimensions (WxDxH): 1010 x 270 x 192 mm
Weight: 19 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Accessories / Standard delivery

• Multi-piece ring set (removable)
• Adjustable water level regulator
• Sieve bottom
• Support rods (600 mm length, Ø 12 mm)

Part number
L003068

Characteristics / technical specifications

• Model: Hydro H 9 V
• Working temperature range: 25 ... 100 °C
• Temperature stability: 3 ± K
• Heater power (max.): 1.5 kW
• Power supply: 230 V; 50/60 Hz
• Current consumption: 16 A
• Bath diameter: Ø 131 mm
• Number of openings: 6
• Dimensions (WxDxH): 1010 x 270 x 192 mm
• Weight: 19 kg
• Materials: bath interior, cover, sieve plate and heating element in stainless steel
