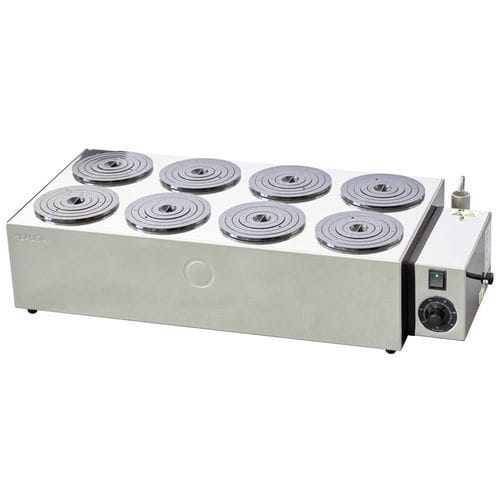

Boiling water bath Hydro H 19 V

unstirredlaboratorybenchtop

Product description
LAUDA Hydro vaporization baths operate in a temperature range of 25 to 100 °C. The bath opening diameter is adjustable in approx. 20 mm steps using a multi-part ring set (nine rings). Models H 11 V and H 19 V are designed for protected working use in fume cupboards. Housings and wet parts are made of stainless steel to allow evaporation work with chemically aggressive media.

Features

• Vaporization water bath for gentle evaporation/steaming work
• Water deficiency protection
• All hole covers consist of a removable multi-part ring set
• Temperature adjustment via rotary knob with temperature scale
• Adjustable water level regulator, sieve bottom and ring set included as standard
• Multi-piece ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover frame, sieve plate and heating element in stainless steel

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 3 ± K

Technical features (summary)

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 3 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 16 A
• Bath opening (Ø): 111 mm
• Number of bath openings: 8
• Dimensions (WxDxH): 690 x 300 x 155 mm
• Weight: 8 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Characteristics / technical specifications

• Model: Hydro H 19 V — vaporization water bath for evaporation/steaming work in fume cupboards
• Stainless steel bath interior, cover frame, sieve plate and heating element for chemically aggressive media
• Multi-part removable ring set (approx. 20 mm steps) for variable opening diameter; ring set made of heat-resistant plastic
• Adjustable water level regulator and sieve bottom included as standard
• 1-point temperature controller; temperature adjusted via rotary knob with scale
• Water deficiency protection
• Bath Ø 111 mm with 8 openings
• Electrical data: 230 V / 50-60 Hz; heater 1.5 kW; current 16 A; power cord with angled plug (CEE7/7) as standard
• Overall dimensions: 690 x 300 x 155 mm; weight 8 kg
