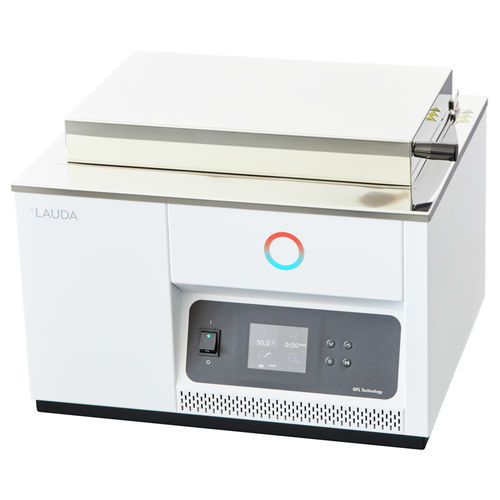

Circulating water bath Hydro H 16 A

laboratorybenchtopheated

Product description
LAUDA Hydro water baths in stainless steel provide suitable bath depth and openings for a wide range of laboratory and industrial applications. Series bath volumes range from 4 to 41 L. Each unit delivers a working temperature up to 100 °C with a temperature stability of ±0.1 K. A TFT colour display enables intuitive operation and temperature readout in °C or °F.

Features

• Easy-to-operate water bath
• Timer adjustable in hours (h) and minutes (min)
• Adjustable trigger points for over- and under-temperature alarms up to ±10 K
• Optical and acoustic alarms for low water level and over/under temperature
• Three application-specific timer functions
• Bath vessel with drain valve
• Standard lid and perforated floor (sieve plate)
• TFT display showing all process data
• Membrane keypad with clear symbols
• Temperature display switchable between °C and °F
• Sensor break/short-circuit detection
• Integrated circulation system to improve spatial temperature uniformity
• Double-walled stainless steel heat-insulating lid with inner curvature to avoid condensate dripping
• Set and display temperature in 0.1 °C increments
• Digital setpoint adjustment and 1-point temperature controller
• Electronic monitoring of the temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel
• Design prevents condensate from dripping back into vessels

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.1 ± K

Accessories (examples)

• Milk bottle rack
• Insert rack (test tube racks)

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 1.5 kW
• Min. / max. bath volume: 7.5 / 13.9 L
• Dimensions (WxDxH): 500 x 440 x 345 mm
• Weight: 16 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Product reference: L002907
