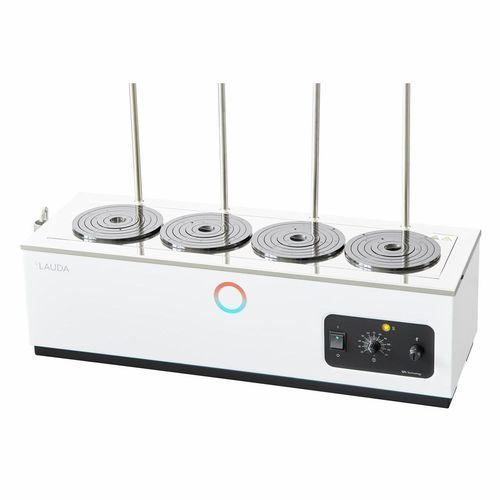

Stainless steel thermostatic bath Hydro H 6 V

heatedconstant temperaturewith temperature control

Product overview
The LAUDA Hydro vaporization water baths operate between 25 and 100 °C. The bath opening diameter is adjustable in approximately 20 mm steps using a multi-piece ring set (9 rings), enabling adaptation to different vessel sizes. Models H 11 V and H 19 V are designed for protected use in fume cupboards. Bath interior, cover, sieve plate and housing components are made of stainless steel to allow evaporation with chemically aggressive media.

Features

• Vaporization water bath for gentle evaporation processes
• Water deficiency protection
• Multi-piece ring set in heat-resistant plastic (9 rings) for variable opening diameters
• Temperature adjustment via rotary knob with temperature scale
• Adjustable water level regulator, sieve bottom and ring set included as standard
• Stainless steel support rods (600 mm length, Ø 12 mm) included
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 3 ± K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 3 ± K
Heater power max.: 1 kW
Max. power consumption: 1 kW
Current consumption: 16 A
Bath diameter (Ø): 131 mm
Number of bath openings: 4
Dimensions (W×D×H): 710 x 270 x 192 mm
Weight: 13 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Standard accessories

• Multi-piece ring set (9 rings)
• Adjustable water level regulator
• Sieve bottom
• Stainless steel support rods (600 mm, Ø 12 mm)
