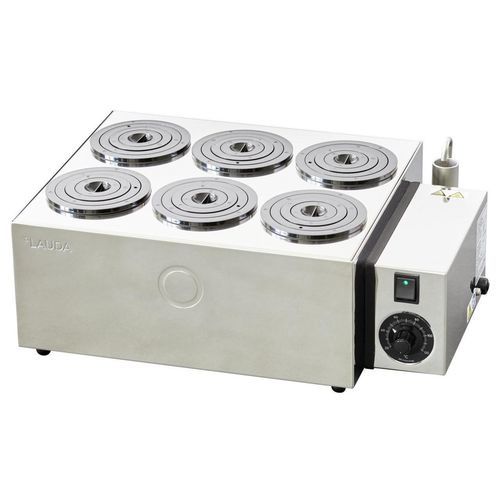

Laboratory water bath Hydro H 11 V

heatedheatingthermostatic

Product description
LAUDA Hydro vaporization baths operate in a temperature range from 25 to 100 °C. The opening diameter of the water bath can be changed in approx. 20 mm steps using the multi-piece ring set (nine rings). Models H 11 V and H 19 V are designed for protected use in fume cupboards. Housings and bath components are stainless steel to allow evaporation work with chemically aggressive media.

Features

• Vaporization water bath for gentle evaporation work
• Water deficiency protection
• All hole covers consist of a removable multi-piece ring set
• Temperature adjustment via rotary knob with scale
• Adjustable water level regulator, sieve bottom and ring set supplied as standard
• Ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover frame, sieve plate and heating element made of stainless steel

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 3 ± K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 3 ± K
Heater power max.: 1.5 kW
Max. power consumption: 1.5 kW
Current consumption: 16 A
Size of bath (Ø): 91 mm
Number of bath openings: 6
Dimensions (WxDxH): 450 x 300 x 155 mm
Weight: 6 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled Schuko plug (CEE7/7)
Order number: L003069

Accessories (examples)

• Algizid Aquastab (water treatment accessory)
• Algicide Aquastab (accessory variants)
• Other accessories available via LAUDA accessory finder

Specifications

• Model: Hydro H 11 V
• Device line: Hydro vaporization water baths
• Bath diameter: Ø 91 mm
• Number of openings: 6
• Temperature range: 25–100 °C
• Temperature stability: 3 ± K
• Heater power: 1.5 kW
• Power consumption / current: 1.5 kW / 16 A
• Dimensions (WxDxH): 450 x 300 x 155 mm
• Weight: 6 kg
• Materials: stainless steel bath interior, cover frame, sieve plate and heating element
• Standard equipment: adjustable water level regulator, sieve bottom, multi-piece ring set
• Protection: water deficiency protection
