Electric forklift truck E100 – E180
ride-onindustrialtransport

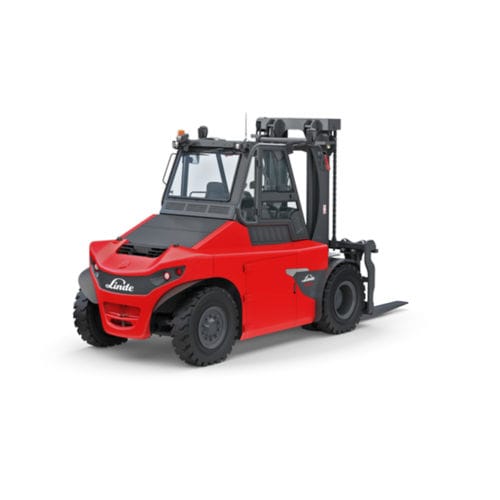

Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 2
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 3
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 4
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 5
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 6
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 7
Electric forklift truck - E100 – E180 - Linde Material Handling - ride-on / industrial / transport - image - 8
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
transport, industrial, precision
Other characteristics
high-performance, low-noise, for heavy loads, custom
Carrying capacity

Max.: 18 t
(19.8 us ton)

Min.: 10 t
(11 us ton)

Lifting height

4,000 mm
(157.48 in)

Overall width

2,300 mm, 2,530 mm, 2,565 mm
(90.6 in, 99.6 in, 101 in)

Overall length

Max.: 7,666 mm
(301.8 in)

Min.: 5,766 mm
(227 in)

Load center distance

600 mm, 900 mm, 1,200 mm
(23.6 in, 35.4 in, 47.2 in)

Weight without load

Max.: 27,362 kg
(60,322.9 lb)

Min.: 22,697 kg
(50,038.3 lb)

Axle loading with maximum load front

Max.: 41,539 kg
(91,577.8 lb)

Min.: 26,514 kg
(58,453.4 lb)

Axle loading with maximum load rear

Max.: 6,183 kg
(13,631.2 lb)

Min.: 3,135 kg
(6,911.5 lb)

Axle loading without load front

Max.: 14,152 kg
(31,199.8 lb)

Min.: 11,691 kg
(25,774.2 lb)

Axle loading without load rear

Max.: 13,229 kg
(29,165 lb)

Min.: 10,010 kg
(22,068.3 lb)

Track width front

1,874 mm
(73.8 in)

Track width rear

1,970 mm
(77.6 in)

Height of mast when lowered

3,404 mm, 3,736 mm
(134 in, 147.1 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

5,329 mm, 5,661 mm
(209.8 in, 222.9 in)

Height to top of overhead guard

3,010 mm, 3,035 mm
(118.5 in, 119.5 in)

Seat height

1,974 mm, 2,004 mm
(77.7 in, 78.9 in)

Tow couplig height

550 mm, 580 mm
(21.7 in, 22.8 in)

Length to fork face

Max.: 5,266 mm
(207.3 in)

Min.: 4,566 mm
(179.8 in)

Fork carriage width

2,545 mm
(100.2 in)

Ground clearance under mast with load

172 mm, 200 mm
(6.8 in, 7.9 in)

Ground clearance at center of wheelbase with load

346 mm, 376 mm
(13.6 in, 14.8 in)

Turning circle radius

Max.: 4,754 mm
(187.2 in)

Min.: 4,102 mm
(161.5 in)

Travel speed

18 km/h, 20 km/h
(11.2 mph, 12.4 mph)

Lifting speed

0.39 m/s
(1.28 ft/s)

Lowering speed

0.49 m/s, 0.5 m/s
(1.608 ft/s, 1.64 ft/s)

Rated output

18 kW
(24.5 hp)

Maximum operating pressure

250 bar
(3,625.9 psi)

Oil flow

Max.: 130 l/min
(34.3 us gal/min)

Min.: 5 l/min
(1.3 us gal/min)

Noise level

70 dB

Description

High Performance Precisely Dosed The electric E100 – E180 heavy trucks from Linde are the most powerful in their class. They combine the best of both worlds of E- and IC trucks: The series combines the power delivery characteristic of diesel vehicles with the environmentally friendly, quiet, dynamic driving style of electric forklift trucks. The new heavy trucks transport and stack loads of up to 18,000 kilograms at heights of up to ten meters. The electric forklift trucks draw their energy from either two lead-acid or two lithium-ion batteries. Customers can therefore choose between a cost-efficient variant for light and medium applications and equipment for demanding tasks and high utilization. A quick battery change is possible for 24/7 use. Thanks to the powerful electric motors, the new heavy trucks are in no way inferior to Linde’s most powerful IC truck to date, putting them at the top of the performance range. Safety The E100 – E180 heavy trucks are designed to provide the best visibility in all directions. The view to the rear is unobstructed and the glass doors on both sides allow an unrestricted view, which prevents collisions and accidents. Optimized lift mast profiles and an armored glass roof also allow the driver to keep an eye on the goods being transported during storage and retrieval. This contributes to safe and precise load handling. The batteries integrated into the chassis not only contribute to excellent visibility, but also shift the center of gravity of the truck downwards. As a result, the heavy trucks are characterized by high stability.
