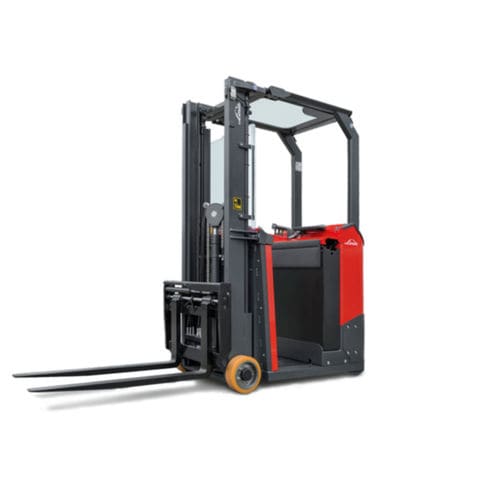

Electric forklift E10 series
stand-onnarrow-aisleindustrial

electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
stand-on
Applications
handling, industrial, narrow-aisle, order-picking
Other characteristics
counterbalanced, compact
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

1,460 mm, 1,660 mm
(57.48 in, 65.35 in)

Overall width

828 mm
(32.6 in)

Overall length

2,604 mm
(102.5 in)

Load center distance

600 mm
(23.6 in)

Weight without load

2,250 kg
(4,960.4 lb)

Axle loading with maximum load front

820 kg
(1,807.8 lb)

Axle loading with maximum load rear

2,418 kg
(5,330.8 lb)

Axle loading without load front

501 kg
(1,104.5 lb)

Axle loading without load rear

737 kg
(1,624.8 lb)

Height of mast when lowered

1,990 mm, 2,190 mm
(78.3 in, 86.2 in)

Free lift

1,430 mm, 1,630 mm
(56.3 in, 64.2 in)

Overall height with mast raised

2,050 mm, 2,250 mm
(80.7 in, 88.6 in)

Height to top of overhead guard

1,995 mm, 2,190 mm
(78.5 in, 86.2 in)

Seat height

85 mm, 120 mm
(3.3 in, 4.7 in)

Length to fork face

1,454 mm
(57.2 in)

Fork carriage width

650 mm
(25.6 in)

Ground clearance under mast with load

60 mm
(2.4 in)

Ground clearance at center of wheelbase with load

60 mm
(2.4 in)

Turning circle radius

1,320 mm
(52 in)

Travel speed

8 km/h, 12 km/h
(5 mph, 7.5 mph)

Lifting speed

0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)

Lowering speed

0.2 m/s, 0.3 m/s
(0.656 ft/s, 0.984 ft/s)

Rated output

3 kW
(4.1 hp)

Noise level

70 dB

Description

Versatile Load Handling in Confined Spaces The compact E10 electric forklift truck from Linde Material Handling combines high maneuverability with a wide range of application options. With a lifting capacity of up to 1,000 kilograms, it is the smallest model in its series but is suitable for a multitude of applications thanks to its optimal weight distribution. Its short wheelbase, compact construction with a width of just 828 millimeters and optimal steering concept enable stacking, transporting, order picking, loading and unloading, even in the tightest spaces. Automatic speed reduction when cornering also gives the E10 high stability. Characteristics Safety The E10 is extra stable thanks to its standard speed reduction feature based on the curve radius and lifting height. It also has an overhead guard to protect the driver against falling loads. Further safety is also provided by optional additional equipment like the Linde BlueSpot™ and Linde TruckSpot™. A warning sign projected on to the floor signals that the forklift truck is approaching, thereby warning those in the immediate working area. An optional flashing warning light, fitted underneath the overhead roof guard, makes the E10 even easier to see and helps to prevent accidents at work. •Automatic speed reduction •Overhead guard against falling loads •BlueSpot™ and TruckSpot™ (optional) •Optional flashing warning lights
