Electric forklift Ei16 – Ei20 P
AGVindoorhandling

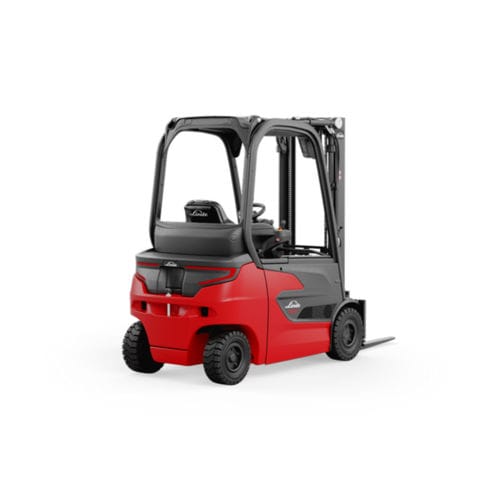

Electric forklift - Ei16 – Ei20 P - Linde Material Handling - AGV / indoor / handling
Electric forklift - Ei16 – Ei20 P - Linde Material Handling - AGV / indoor / handling
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
AGV
Applications
handling, transport, indoor
Other characteristics
counterbalanced
Carrying capacity

Min.: 1,600 kg
(3,527.4 lb)

Max.: 2,000 kg
(4,409.2 lb)

Lifting height

Min.: 2,795 mm
(110.04 in)

Max.: 6,225 mm
(245.08 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,917 kg
(6,430.9 lb)

Max.: 3,345 kg
(7,374.5 lb)

Axle loading with maximum load front

Min.: 608 kg
(1,340.4 lb)

Max.: 685 kg
(1,510.2 lb)

Axle loading with maximum load rear

Min.: 1,590 kg
(3,505.3 lb)

Max.: 1,855 kg
(4,089.6 lb)

Ground clearance under mast with load

Min.: 91 mm
(3.6 in)

Max.: 95 mm
(3.7 in)

Ground clearance at center of wheelbase with load

Min.: 97 mm
(3.8 in)

Max.: 99 mm
(3.9 in)

Turning circle radius

Min.: 1,668 mm
(65.7 in)

Max.: 1,736 mm
(68.3 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

Min.: 0.48 m/s
(1.575 ft/s)

Max.: 0.61 m/s
(2.001 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

10,100 daN

Gradeability

Min.: 18.3 %

Max.: 37.5 %

Maximum operating pressure

170 bar
(2,465.6 psi)

Oil flow

32 l/min
(8.5 us gal/min)

Noise level

63 dB

Description

Increased comfort and safety in daily use The Ei16 – Ei20 P electric counterbalanced forklift trucks with permanently integrated lithium-ion battery combine reliable drive performance and exceptional cab comfort. The fact that there is no battery tray means the driver benefits from noticeably more headroom and legroom as well as a lower and wider entrance. Easy charging of the trucks at the charging station replaces laborious battery changes. If the breaks are long enough, the forklifts can also be used in two-shift operation. Top speeds of 20 km/h make them the ideal choice for standard indoor applications, such as fast transport journeys in warehouses or production areas. The four-wheeled version with the Linde combi-steering axle delivers high driving stability combined with impressive maneuverability. In addition, a wide range of equipment options, chassis sizes, and battery capacities enable you to configure your forklift to suit your specific requirements. Safety Like all Linde trucks, the Ei16 – Ei20 P are designed for maximum safety. A low center of gravity and the overhead tilt cylinders ensure high driving stability, even when handling loads at high lifting heights. The slim design of the mast, A-pillar, and chassis ensures that the driver benefits from excellent all-round visibility.
