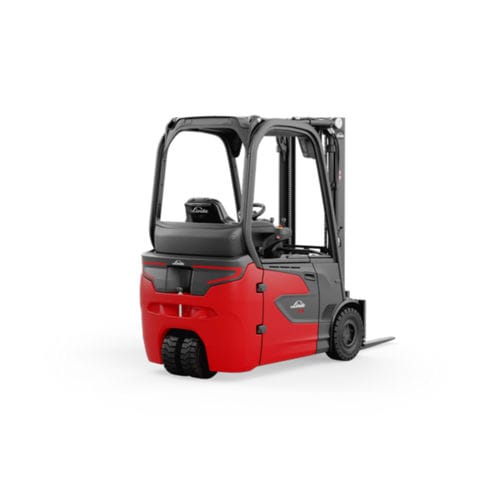

Electric forklift E14 – E20ride-onindoorindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, industrial, indoor
- Other characteristics
- counterbalanced, compact, high-performance, 3-wheel, with super-elastic tires
- Carrying capacity
1.4 t, 1.6 t, 1.8 t, 2 t
(1.5 us ton, 1.8 us ton, 2 us ton, 2.2 us ton)- Lifting height
2,850 mm, 3,050 mm
(112.2 in, 120.08 in)- Overall width
1,086 mm, 1,162 mm
(42.8 in, 45.7 in)- Overall length
Min.: 2,761 mm
(108.7 in)Max.: 2,986 mm
(117.6 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Min.: 2,950 kg
(6,503.6 lb)Max.: 3,472 kg
(7,654.4 lb)- Axle loading with maximum load front
Min.: 3,754 kg
(8,276.2 lb)Max.: 4,836 kg
(10,661.6 lb)- Axle loading with maximum load rear
Min.: 594 kg
(1,309.5 lb)Max.: 881 kg
(1,942.3 lb)- Axle loading without load front
Min.: 1,425 kg
(3,141.6 lb)Max.: 1,666 kg
(3,672.9 lb)- Axle loading without load rear
Min.: 1,525 kg
(3,362 lb)Max.: 1,840 kg
(4,056.5 lb)- Track width front
930 mm, 966 mm
(36.6 in, 38 in)- Track width rear
172 mm, 176 mm
(6.8 in, 6.9 in)- Height of mast when lowered
2,141 mm, 2,142 mm
(84.3 in, 84.3 in)- Free lift
150 mm
(5.9 in)- Overall height with mast raised
3,652 mm, 3,653 mm
(143.8 in, 143.8 in)- Height to top of overhead guard
Min.: 2,048 mm
(80.6 in)Max.: 2,053 mm
(80.8 in)- Seat height
1,047 mm, 1,048 mm
(41.2 in, 41.3 in)- Tow couplig height
527 mm, 528 mm, 529 mm
(20.7 in, 20.8 in, 20.8 in)- Length to fork face
Min.: 1,861 mm
(73.3 in)Max.: 2,086 mm
(82.1 in)- Fork carriage width
980 mm
(38.6 in)- Ground clearance under mast with load
91 mm, 92 mm, 93 mm, 94 mm
(3.6 in, 3.6 in, 3.7 in, 3.7 in)- Ground clearance at center of wheelbase with load
96 mm, 97 mm, 98 mm, 99 mm
(3.8 in, 3.8 in, 3.9 in, 3.9 in)- Turning circle radius
Min.: 1,491 mm
(58.7 in)Max.: 1,707 mm
(67.2 in)- Travel speed
20 km/h
(12.4 mph)- Lifting speed
Min.: 0.48 m/s
(1.575 ft/s)Max.: 0.61 m/s
(2.001 ft/s)- Lowering speed
0.5 m/s, 0.58 m/s
(1.64 ft/s, 1.903 ft/s)- Rated output
5.3 kW
(7.2 hp)- Maximum operating pressure
170 bar
(2,465.6 psi)- Oil flow
32 l/min
(8.5 us gal/min)- Noise level
63 dB
Description
Agile and customizable for maximum handling performance
The electric counterbalance forklift trucks E14 – E20 combine compact design and high maneuverability with top speeds of up to 20 km/h. This helps them deliver maximum handling performance, especially in tight spaces. The three-wheeled version with swivel steering axle and compact chassis ensures maximum maneuverability in indoor applications. The three-wheeled forklift truck is available in seven variants with different battery capacities and chassis sizes. This gives users the perfect forklift truck for every application scenario. The forklift trucks also offer a high level of flexibility in terms of energy supply: Linde offers a choice of lead-acid and Li-ION batteries as well as fuel cell systems. Thanks to the plug-and-play principle, fleet operators can continue to use existing batteries or switch between lead-acid and Li-ION batteries without having to convert. All this makes the E14 – E20 the most versatile and economical forklift truck for indoor use in its payload class.
