Electric forklift Xi16 – Xi20 RP
ride-onindustrialhandling

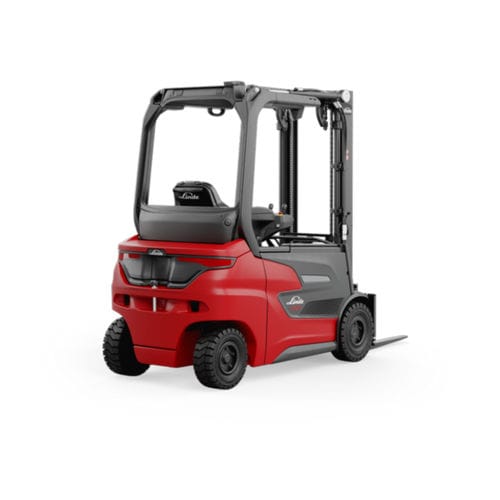

Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 2
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 3
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 4
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 5
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 6
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 7
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 8
Electric forklift - Xi16 – Xi20 RP - Linde Material Handling - ride-on / industrial / handling - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial
Other characteristics
4-wheel, counterbalanced, high-performance, 3-wheel, with super-elastic tires
Carrying capacity

1.6 t, 1.8 t, 2 t
(1.8 us ton, 2 us ton, 2.2 us ton)

Lifting height

3,050 mm
(120.08 in)

Overall width

1,086 mm, 1,173 mm
(42.8 in, 46.2 in)

Overall length

2,921 mm, 2,961 mm, 3,015 mm
(115 in, 116.6 in, 118.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,045 kg, 3,315 kg, 3,538 kg
(6,713.1 lb, 7,308.3 lb, 7,800 lb)

Axle loading with maximum load front

3,931 kg, 4,349 kg, 4,709 kg
(8,666.4 lb, 9,587.9 lb, 10,381.6 lb)

Axle loading with maximum load rear

714 kg, 766 kg, 829 kg
(1,574.1 lb, 1,688.7 lb, 1,827.6 lb)

Axle loading without load front

1,349 kg, 1,464 kg, 1,539 kg
(2,974 lb, 3,227.6 lb, 3,392.9 lb)

Axle loading without load rear

1,696 kg, 1,851 kg, 1,999 kg
(3,739 lb, 4,080.8 lb, 4,407 lb)

Track width front

930 mm, 966 mm
(36.6 in, 38 in)

Track width rear

837 mm
(33 in)

Height of mast when lowered

2,143 mm, 2,144 mm, 2,145 mm
(84.4 in, 84.4 in, 84.4 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

3,654 mm, 3,655 mm, 3,656 mm
(143.9 in, 143.9 in, 143.9 in)

Height to top of overhead guard

2,076 mm, 2,077 mm, 2,079 mm
(81.7 in, 81.8 in, 81.9 in)

Seat height

1,021 mm
(40.2 in)

Tow couplig height

546 mm, 547 mm
(21.5 in, 21.5 in)

Length to fork face

2,021 mm, 2,061 mm, 2,115 mm
(79.6 in, 81.1 in, 83.3 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

91 mm, 93 mm, 95 mm
(3.6 in, 3.7 in, 3.7 in)

Ground clearance at center of wheelbase with load

97 mm, 99 mm
(3.8 in, 3.9 in)

Turning circle radius

1,651 mm, 1,686 mm, 1,736 mm
(65 in, 66.4 in, 68.3 in)

Travel speed

21 km/h
(13 mph)

Lifting speed

0.57 m/s, 0.6 m/s, 0.75 m/s
(1.87 ft/s, 1.969 ft/s, 2.461 ft/s)

Lowering speed

0.5 m/s, 0.58 m/s
(1.64 ft/s, 1.903 ft/s)

Rated output

6.5 kW
(8.8 hp)

Maximum operating pressure

170 bar
(2,465.6 psi)

Oil flow

32 l/min
(8.5 us gal/min)

Noise level

66 dB

Description

Linde Roadster: Visibility, Safety, Optimum Performance The Xi16 – Xi20 RP counterbalanced forklift trucks from Linde Material Handling combine the outstanding performance, safety, and ergonomics of the proven Xi series with maximum all-round visibility. The “R” in the type name stands for “Roadster” and indicates a clear view to the front. This is made possible by the characteristic Linde MH overhead tilt cylinders: these are connected to the side of the cab roof, which removes the need for the A-pillar. This means that the driver always has a full overview of the route, load, and working environment. The Roadster thus provides a huge boost to safety and efficiency, especially for demanding tasks such as loading or maneuvering in confined spaces. Just like the trucks in the classic Xi series, the Roadster sets new performance standards in the 1 to 2 metric ton load range. The advanced drive technology enables above-average lifting and lowering speeds even under heavy loads, making it demonstrably the most powerful truck in its segment. At the same time, the Roadster has been optimized for ergonomics and comfort. The permanently integrated Li-ION battery eliminates the need for a battery tray, which provides more space in the interior for the driver. The truck also features a larger and lower step, making it safer and easier than ever to get in and out of the truck. Thanks to the proven Linde combination steering axle, the 4-wheel forklift truck offers maximum agility and stability, which ensures optimal maneuverability. With a wide range of equipment options and chassis variants available, the truck can be optimally configured to meet any requirement.
