- Electric forklift
- Linde Material Handling

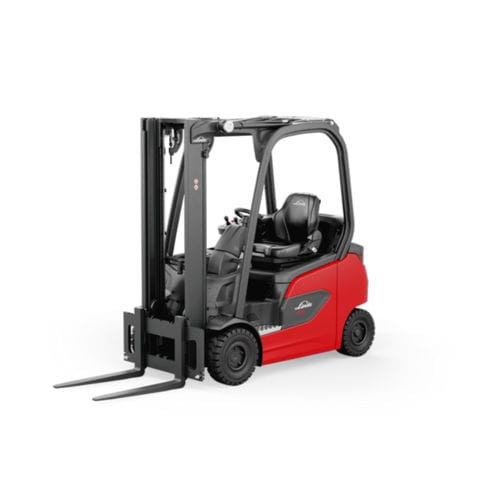

Electric forklift E16 – E20 Pride-onfor warehouseindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, industrial, for warehouse
- Other characteristics
- 4-wheel, counterbalanced, compact, high-performance, with super-elastic tires, rugged
- Carrying capacity
1.6 t, 1.8 t, 2 t
(1.8 us ton, 2 us ton, 2.2 us ton)- Lifting height
2,850 mm, 3,050 mm, 3,350 mm
(112.2 in, 120.08 in, 131.89 in)- Overall width
1,086 mm, 1,162 mm
(42.8 in, 45.7 in)- Overall length
Max.: 3,060 mm
(120.5 in)Min.: 2,963 mm
(116.7 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Max.: 3,597 kg
(7,930 lb)Min.: 3,090 kg
(6,812.3 lb)- Axle loading with maximum load front
Max.: 4,922 kg
(10,851.2 lb)Min.: 4,099 kg
(9,036.7 lb)- Axle loading with maximum load rear
Max.: 801 kg
(1,765.9 lb)Min.: 591 kg
(1,302.9 lb)- Axle loading without load front
Max.: 1,735 kg
(3,825 lb)Min.: 1,545 kg
(3,406.1 lb)- Axle loading without load rear
Max.: 1,862 kg
(4,105 lb)Min.: 1,545 kg
(3,406.1 lb)- Track width front
930 mm, 966 mm
(36.6 in, 38 in)- Track width rear
837 mm
(33 in)- Height of mast when lowered
2,141 mm, 2,142 mm, 2,290 mm
(84.3 in, 84.3 in, 90.2 in)- Free lift
150 mm
(5.9 in)- Overall height with mast raised
3,652 mm, 3,653 mm, 3,951 mm, 3,953 mm
(143.8 in, 143.8 in, 155.6 in, 155.6 in)- Height to top of overhead guard
2,048 mm, 2,049 mm, 2,050 mm, 2,206 mm
(80.6 in, 80.7 in, 80.7 in, 86.9 in)- Seat height
1,047 mm, 1,048 mm, 1,204 mm
(41.2 in, 41.3 in, 47.4 in)- Tow couplig height
546 mm, 547 mm, 548 mm, 611 mm, 612 mm
(21.5 in, 21.5 in, 21.6 in, 24.1 in, 24.1 in)- Length to fork face
Max.: 2,160 mm
(85 in)Min.: 2,063 mm
(81.2 in)- Fork carriage width
980 mm
(38.6 in)- Ground clearance under mast with load
Max.: 94 mm
(3.7 in)Min.: 90 mm
(3.5 in)- Ground clearance at center of wheelbase with load
Max.: 99 mm
(3.9 in)Min.: 96 mm
(3.8 in)- Turning circle radius
1,693 mm, 1,712 mm, 1,728 mm, 1,781 mm
(66.7 in, 67.4 in, 68 in, 70.1 in)- Travel speed
20 km/h
(12.4 mph)- Lifting speed
0.48 m/s, 0.51 m/s, 0.54 m/s, 0.61 m/s
(1.575 ft/s, 1.673 ft/s, 1.772 ft/s, 2.001 ft/s)- Lowering speed
0.5 m/s, 0.58 m/s, 0.6 m/s
(1.64 ft/s, 1.903 ft/s, 1.969 ft/s)- Rated output
5.3 kW
(7.2 hp)- Maximum operating pressure
170 bar
(2,465.6 psi)- Oil flow
32 l/min
(8.5 us gal/min)- Noise level
63 dB
Description
Maximum maneuverability performance in many model versions
The E16 – E20 P electric counterbalance forklift truck are the most productive and versatile models in their class. With a compact design, exceptional maneuverability and speeds of up to 20 km/h, they achieve maximum handling performance. The four-wheeled version with the innovative Linde combi-steering axle combines maximum maneuverability with optimum stability. In total, the four-wheeled truck is available in seven different models with different battery capacities and chassis sizes. This means that the E16 – E20 P offer the largest range of models in the 1 to 2 tonne payload range. Ultimate flexibility also applies to the energy source: You can choose from lead-acid and Li-ION batteries as well as fuel cell systems from Linde. Thanks to the plug-and-play principle, fleet operators can continue to use existing batteries or switch between lead-acid and Li-ION without having to convert. Handling performance, energy efficiency, variety of versions and high resale value make the E16 – E20 P an all-round economic choice.
Catalogs
Electric Forklift Trucks
40 Pages
