Electric forklift Ei14 – Ei20
walk-behindhandlingtransport

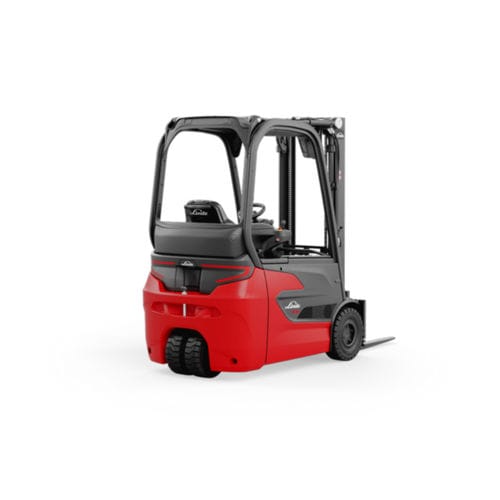

Electric forklift - Ei14 – Ei20 - Linde Material Handling - walk-behind / handling / transport
Electric forklift - Ei14 – Ei20 - Linde Material Handling - walk-behind / handling / transport
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
walk-behind
Applications
handling, transport
Other characteristics
counterbalanced
Carrying capacity

Min.: 1,400 kg
(3,086.5 lb)

Max.: 2,000 kg
(4,409.2 lb)

Lifting height

3.05 m
(10'00" )

Overall width

Min.: 1,086 mm
(42.8 in)

Max.: 1,173 mm
(46.2 in)

Overall length

Min.: 2,782 mm
(109.5 in)

Max.: 3,015 mm
(118.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,710 kg
(5,974.5 lb)

Max.: 3,345 kg
(7,374.5 lb)

Axle loading with maximum load front

Min.: 3,570 kg
(7,870.5 lb)

Max.: 4,660 kg
(10,273.5 lb)

Axle loading with maximum load rear

Min.: 540 kg
(1,190.5 lb)

Max.: 685 kg
(1,510.2 lb)

Axle loading without load front

Min.: 1,255 kg
(2,766.8 lb)

Max.: 1,490 kg
(3,284.9 lb)

Axle loading without load rear

Min.: 1,455 kg
(3,207.7 lb)

Max.: 1,855 kg
(4,089.6 lb)

Track width front

Min.: 930 mm
(36.6 in)

Max.: 966 mm
(38 in)

Track width rear

Min.: 172 mm
(6.8 in)

Max.: 837 mm
(33 in)

Height of mast when lowered

Min.: 2,143 mm
(84.4 in)

Max.: 2,145 mm
(84.4 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

Min.: 3,654 mm
(143.9 in)

Max.: 3,656 mm
(143.9 in)

Height to top of overhead guard

2,048 mm
(80.6 in)

Seat height

1,021 mm
(40.2 in)

Tow couplig height

Min.: 529 mm
(20.8 in)

Max.: 547 mm
(21.5 in)

Length to fork face

Min.: 1,882 mm
(74.1 in)

Max.: 2,115 mm
(83.3 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

Min.: 91 mm
(3.6 in)

Max.: 95 mm
(3.7 in)

Ground clearance at center of wheelbase with load

Min.: 96 mm
(3.8 in)

Max.: 100 mm
(3.9 in)

Turning circle radius

Min.: 1,512 mm
(59.5 in)

Max.: 1,736 mm
(68.3 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

Min.: 0.48 m/s
(1.575 ft/s)

Max.: 0.61 m/s
(2.001 ft/s)

Lowering speed

Min.: 0.5 m/s
(1.64 ft/s)

Max.: 0.58 m/s
(1.903 ft/s)

Rated drawbar pull

2,500 daN

Gradeability

Min.: 11.5 %

Max.: 25.6 %

Rated output

10.5 kW
(14.3 hp)

Maximum operating pressure

170 bar
(2,465.6 psi)

Oil flow

32 l/min
(8.5 us gal/min)

Noise level

63 dB

Description

Reliable performance with extra comfort The Ei14 – Ei20 electric counterbalanced forklift trucks combine the proven performance of Linde electric forklift trucks with the special interior comfort provided by the integrated Li-ION battery. The absence of the battery tray means that the forklifts offer the driver noticeably more headroom and legroom as well as a lower and wider entrance. With a top speed of up to 20 km/h, they are ideal for fast transport journeys and a high handling capacity, making them perfect for one to two-shift operation indoors. The three-wheeled version with swivel steering axle ensures maximum maneuverability even in tight spaces. The lithium-ion battery enables quick and easy opportunity charging, which means that the forklifts can also be charged during breaks (and therefore negating the need for time-consuming battery changes). If the breaks are long enough, the forklifts can also be used in two-shift operation. The different chassis sizes and battery capacities as well as a wide range of equipment options enables users to find the most efficient and economical configuration for every task. Safety The Ei14 – Ei20 are based on a safety concept that provides comprehensive protection for driver, load, and surroundings. The proven Linde design with a low center of gravity and overhead tilt cylinders delivers maximum stability even at high lifting heights. An excellent view of the load and the working environment is ensured by the slim mast profiles, the narrow A-pillar, the low front plate, and the large cab.
